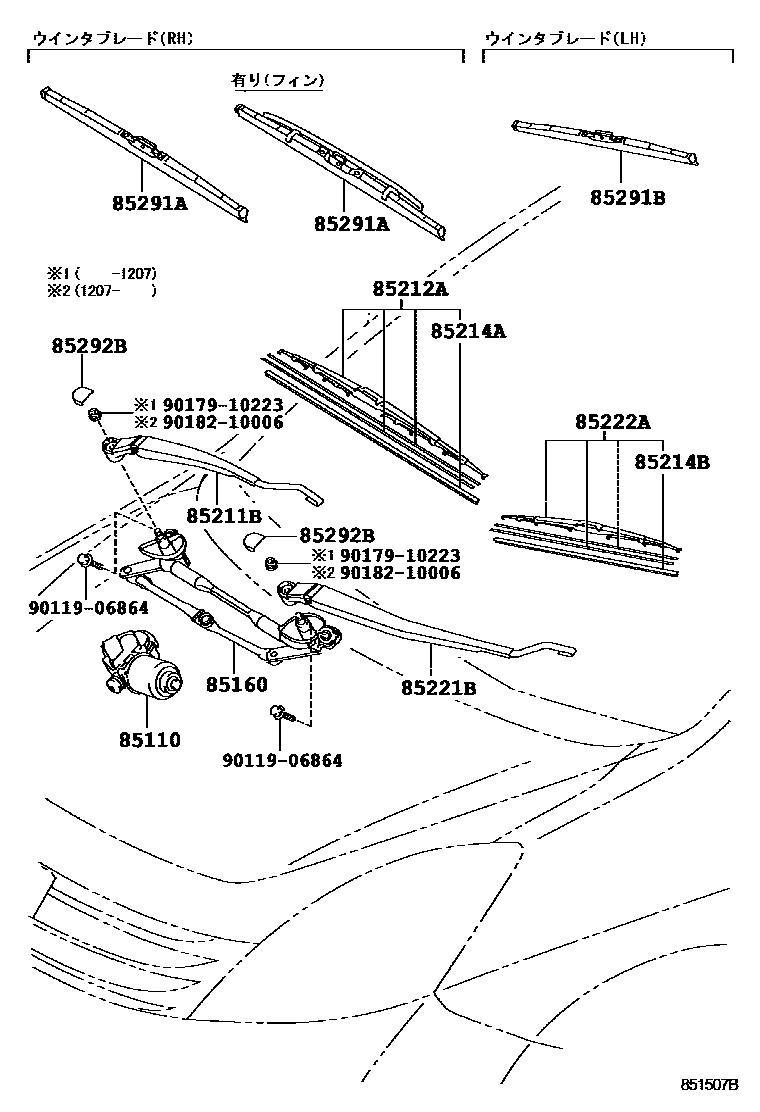

Toyota ISIS — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-44130i200409-200801

main85110-60370i200909

85160LINK ASSY, WINDSHIELD WIPER

main85150-44050i200409-200909

85211BARM, FRONT WIPER, RH

main85211-44100i200409-200909

85212ABLADE, FR WIPER, RH

main85212-30370i200409-200909

85214ARUBBER, WIPER, RH

main85214-50100i200409-200909

85214BRUBBER, WIPER, LH

main85214-50060i200409-200608

main85214-50061i200608-200909

85221BARM, FRONT WIPER, LH

main85221-44080i200409-200909

85222ABLADE, FR WIPER, LH

main85222-13040i200409-200607

main85222-13041i200608-200909

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-24090i200409-200909

main85291-24100i200409-200909

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-44080i200409-200909

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2i200909

9011906864

main90119-06864

9017910223

main90179-10223

9018210006

main90182-10006

14 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota ISIS

This section contains 14 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota ISIS. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH, RUBBER, WIPER, RH.
