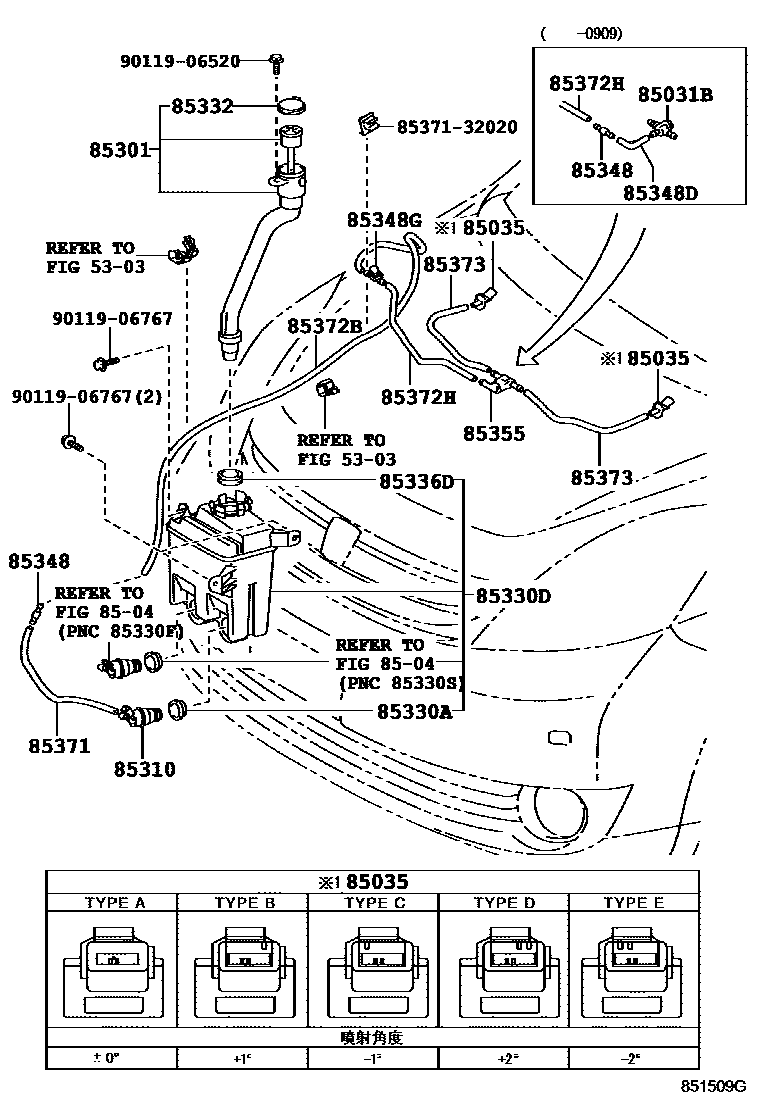

Toyota ISIS — WINDSHIELD WASHER

5303HOOD LOCK & HINGE

→ Go to FIG 53-03

85031BVALVE SUB-ASSY, WASHER

main85321-30080i200409-200909

85035NOZZLE SUB-ASSY, WASHER

main85381-30110×2i200409-200909

main85381-30130×2i200909

main85381-30140×2i200909

main85381-30150×2i200409-200909

main85381-30160×2i200409-200909

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

main85301-44060supersedes 85301-44050i200409-200909

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010i200409-200909

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i200409-200909

85330DJAR ASSY, WASHER

main85315-68010i200409-200909

85332CAP, WINDSHIELD WASHER JAR

main85316-16070i200409-200909

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160i200409-200909

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i200909

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481i200409-200909

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-20800i200409-200909

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i200909

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i200409-200909

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001i200409-200909

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001i200409-200909

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33299×2i200409-200909

8537132020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-32020

9011906520

main90119-06520

9011906767

main90119-06767

21 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota ISIS

This section contains 21 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota ISIS. Key components include: HOOD LOCK & HINGE, VALVE SUB-ASSY, WASHER, NOZZLE SUB-ASSY, WASHER, REAR WASHER, INLET SUB-ASSY, WASHER.
