Toyota ISIS — V-BELT

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1107MOUNTING

→ Go to FIG 11-07

1601WATER PUMP

→ Go to FIG 16-01

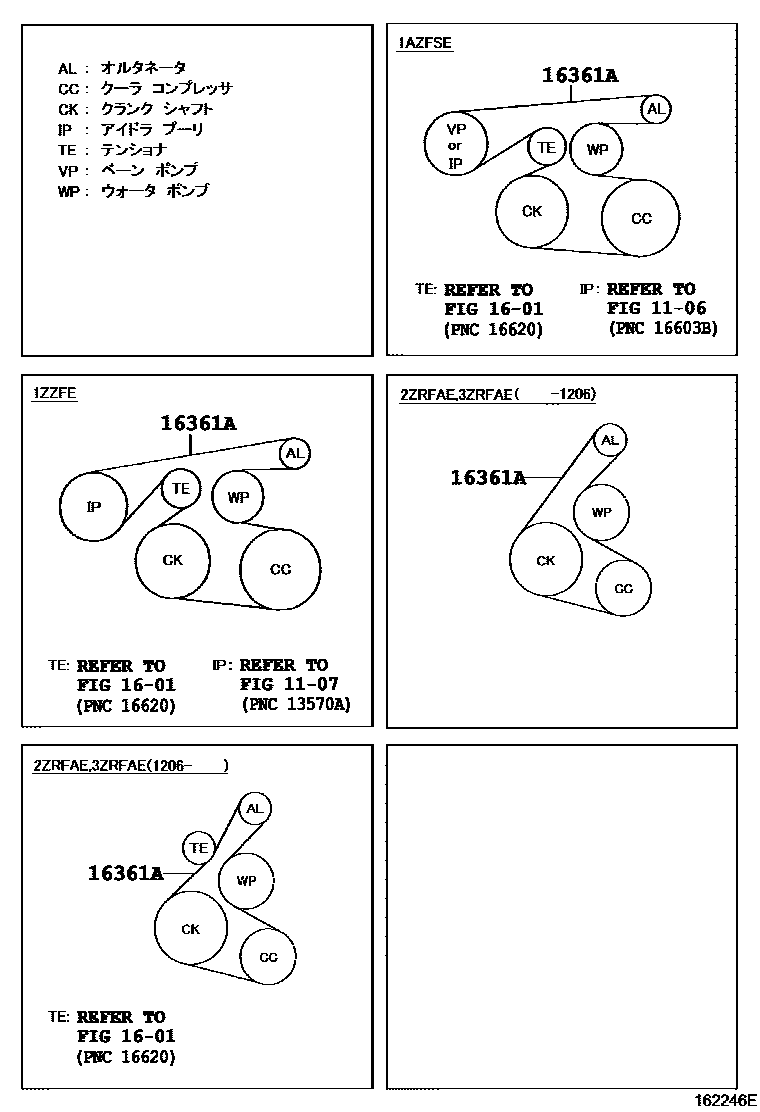

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02574i200409-200902

main90916-02599i200409-200909

main90916-02609i201206

main90916-02664i200909-201206

main99366-H1700i200903-200909

main90916-02563i200409-200909

4 parts on this diagram · 1 diagram in section

V-BELT for Toyota ISIS

This section contains 4 genuine Toyota parts for the V-BELT system of the Toyota ISIS. Key components include: TIMING GEAR COVER & REAR END PLATE, MOUNTING, WATER PUMP, BELT, V(FOR FAN & ALTERNATOR).
