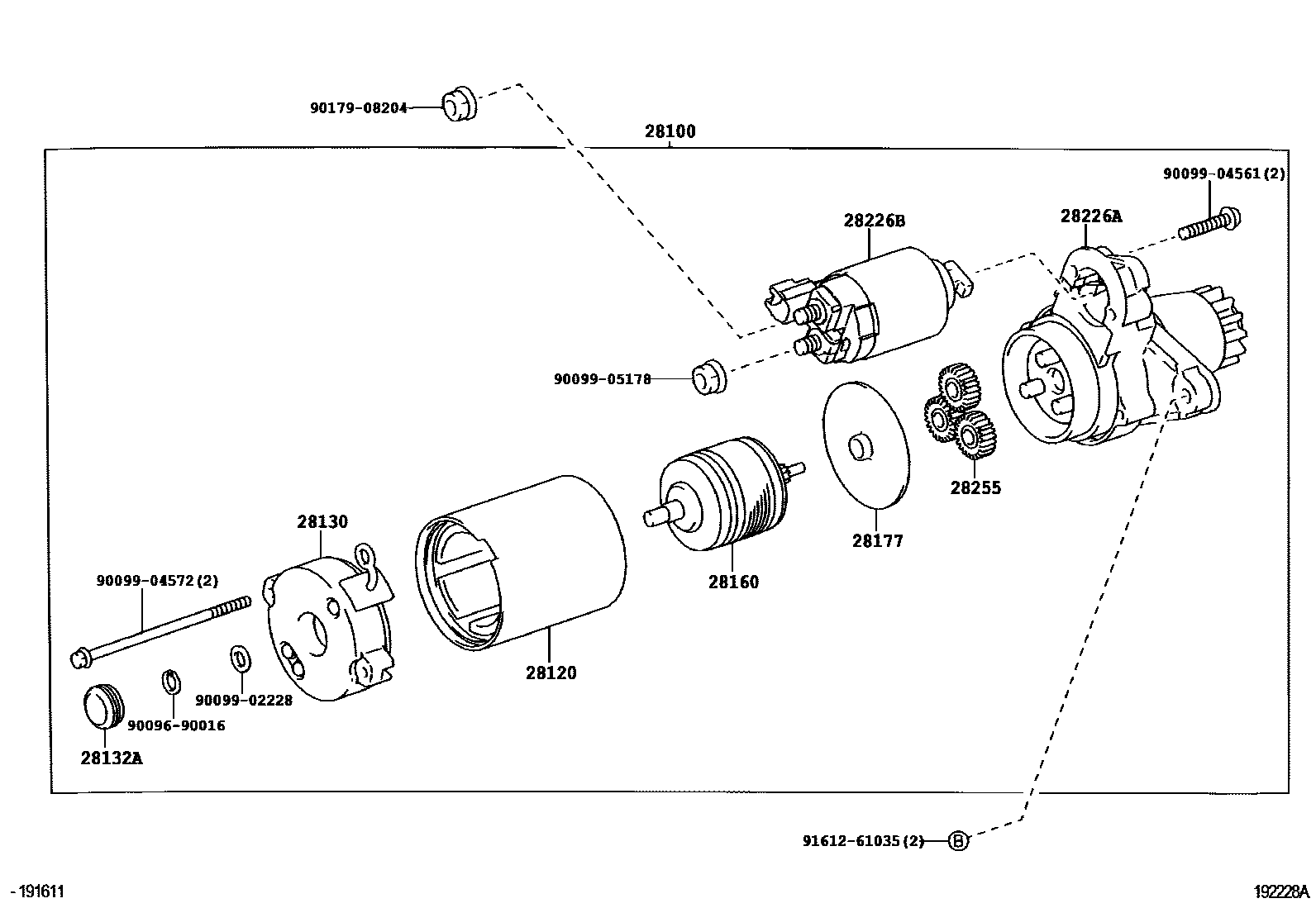

Toyota ISIS — STARTER
28100STARTER ASSY
28120YOKE ASSY, STARTER
28130FRAME ASSY, STARTER COMMUTATOR END
28132ACOVER, STARTER COMMUTATOR END FRAME
28160ARMATURE ASSY, STARTER
28177PLATE(FOR STARTER ARMATURE)
28226ASTARTER KIT, MOTOR TERMINAL
28226BSTARTER KIT, REPAIR SERVICE
28255GEAR, PLANET
9009690016
main90096-90016
9009902228
main90099-02228
9009904561
main90099-04561
9009904572
main90099-04572
9009905178
main90099-05178
9017908204
main90179-08204
9161261035
main91612-61035
16 parts on this diagram · 4 diagrams in section
STARTER for Toyota ISIS
This section contains 23 genuine Toyota parts for the STARTER system of the Toyota ISIS. Key components include: CLUTCH SUB-ASSY, STARTER, CLUTCH SUB-ASSY, STARTER CENTER BEARING, STARTER ASSY, YOKE ASSY, STARTER, RING, O(FOR STARTER YOKE).
