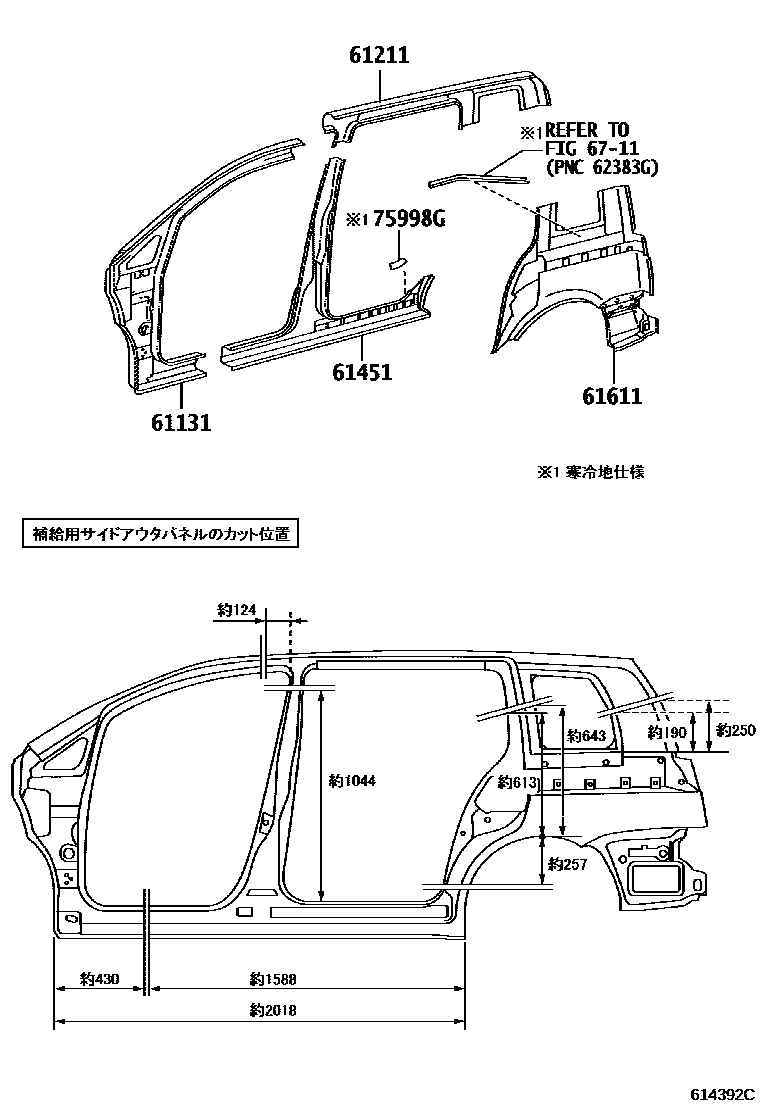

Toyota ISIS — SIDE MEMBER

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-44100i200409-200909

main61131-44110i200409-200909

61211RAIL, ROOF SIDE, OUTER RH

main61211-44090i200409-200703

main61211-44091i200704-200909

61451PANEL, ROCKER, OUTER RH

main61451-44010i200409-200909

main61451-44020i200909

61611PANEL, QUARTER, RH

main61611-44090i200409-200703

main61611-44091i200704-200909

6711SLIDE DOOR ROLLER & RAIL

→ Go to FIG 67-11

75998GSTRIPE, QUARTER, LOWER RH

main75998-44010i200409-200909

6 parts on this diagram · 4 diagrams in section

SIDE MEMBER for Toyota ISIS

This section contains 106 genuine Toyota parts for the SIDE MEMBER system of the Toyota ISIS. Key components include: BRACKET, FRONT FENDER, REAR RH, BRACKET, FRONT FENDER, REAR LH, HOLE PLUG, PATCH, FLOOR SIDE MEMBER, RR LH, BRACKET, FUEL TUBE CLAMP.
