Toyota ISIS — RADIATOR GRILLE

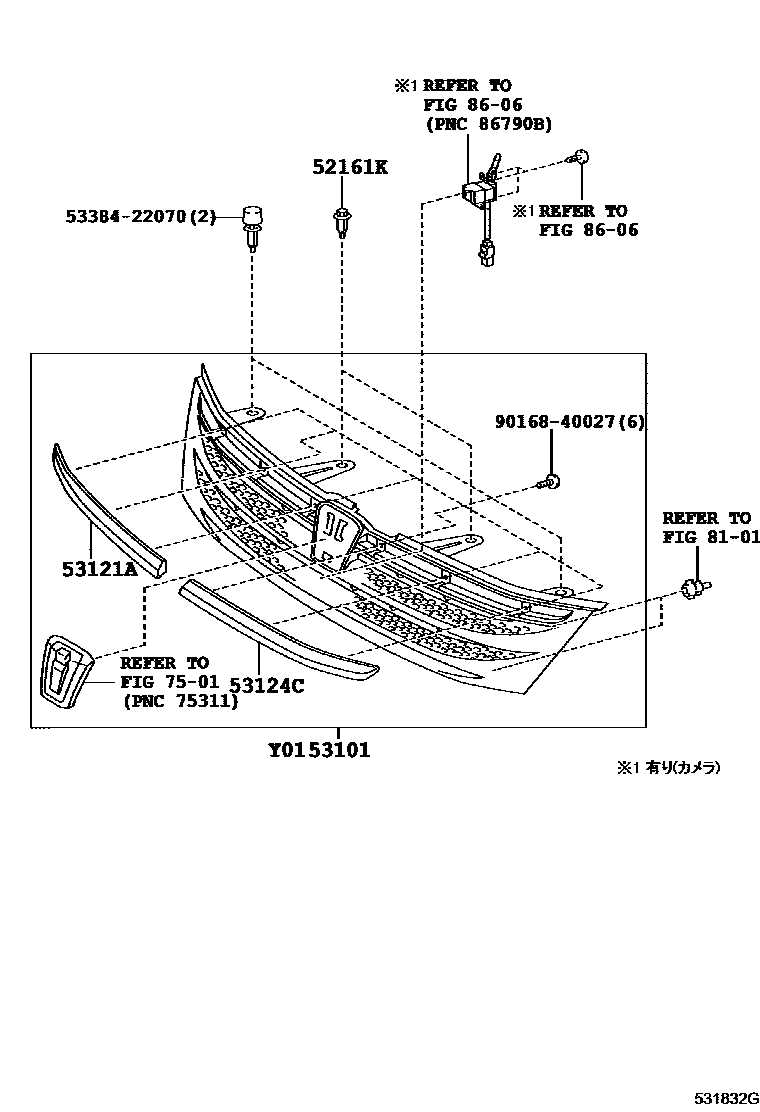

Parts diagram

52161KPIECE, FRONT BUMPER

main52161-16010×2i200409-200909

53101GRILLE SUB-ASSY, RADIATOR

main53101-44330i201106

main53101-44340i201106-201310

main53101-44230supersedes 53101-44180i200512-200705

main53101-44260supersedes 53101-44250i200512-200705

main53101-44280supersedes 53101-44270i200705-200909

main53101-44300supersedes 53101-44290i200705-200909

main53101-44310-A0supersedes 53101-44240-A0i200909-201106

main53101-44310-B0supersedes 53101-44240-B0i200909-201106

main53101-44310-B1supersedes 53101-44240-B1i200909-201106

main53101-44310-C0supersedes 53101-44240-C0i200909-201106

main53101-44310-D0supersedes 53101-44240-D0i200909-201106

main53101-44310-H0supersedes 53101-44240-H0i200909-201106

main53101-44310-J0supersedes 53101-44240-J0i200909-201106

main53101-44310-J1supersedes 53101-44240-J1i200909-201106

main53101-44320i201010-201106

main53101-44350supersedes 53101-44330i201310

53121AMOULDING, RADIATOR GRILLE

main53121-44030i200409-200507

53124CMOULDING, RADIATOR GRILLE, UPPER LH

main53124-44010i200409-200507

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

8101HEADLAMP

→ Go to FIG 81-01

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

5338422070BAR, HOOD SILENCER SUPPORT

main53384-22070

9016840027

main90168-40027

9 parts on this diagram · 3 diagrams in section

RADIATOR GRILLE for Toyota ISIS

This section contains 9 genuine Toyota parts for the RADIATOR GRILLE system of the Toyota ISIS. Key components include: PIECE, FRONT BUMPER, GRILLE SUB-ASSY, RADIATOR, MOULDING, RADIATOR GRILLE, MOULDING, RADIATOR GRILLE, UPPER LH, EMBLEM & NAME PLATE (EXTERIOR & INTERIOR).
