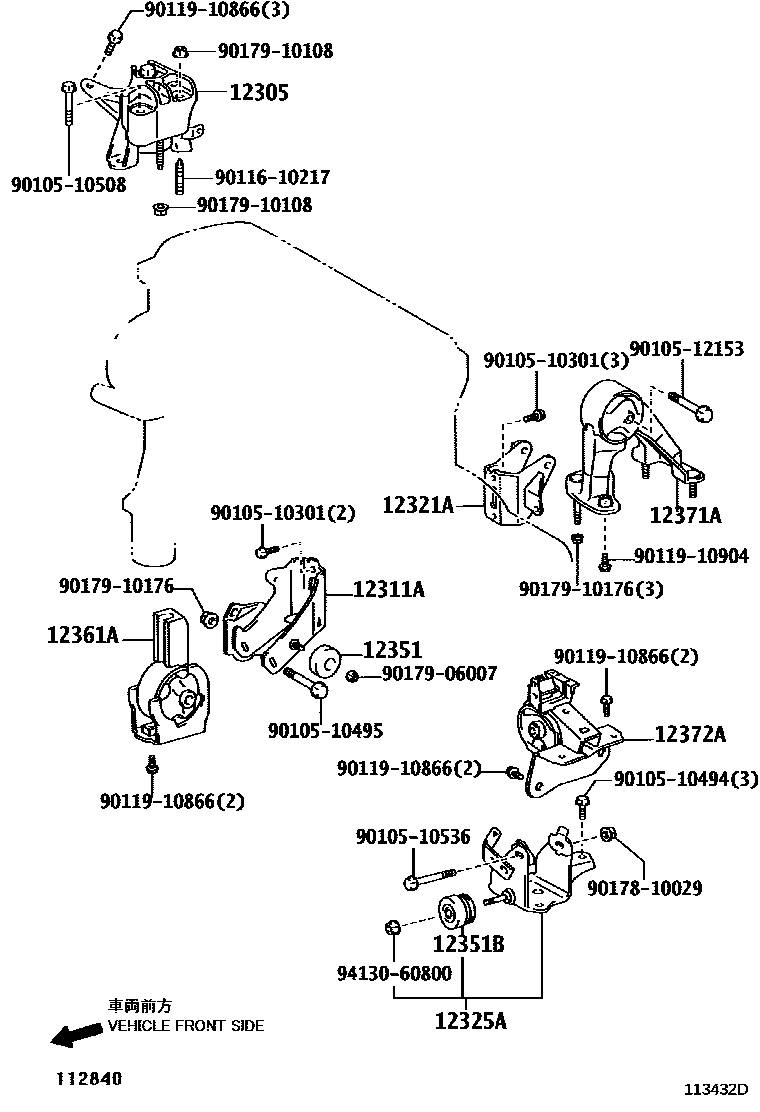

Toyota ISIS — MOUNTING
12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12351DAMPER, ENGINE MOUNTING
12351BDAMPER, ENGINE MOUNTING
12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12371AINSULATOR, ENGINE MOUNTING, REAR
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
9010510301
main90105-10301
9010510494
main90105-10494
9010510495
main90105-10495
9010510508
main90105-10508
9010510536
main90105-10536
9010512153
main90105-12153
9011610217
main90116-10217
9011910866
main90119-10866
9011910904
main90119-10904
9017810029
main90178-10029
9017906007
main90179-06007
9017910108
main90179-10108
9017910176
main90179-10176
9413060800
main94130-60800
23 parts on this diagram · 6 diagrams in section
MOUNTING for Toyota ISIS
This section contains 52 genuine Toyota parts for the MOUNTING system of the Toyota ISIS. Key components include: INSULATOR SUB-ASSY, ENGINE MOUNTING, RH, BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE), INSULATOR SUB-ASSY, DRIVE SHAFT HEAT.
