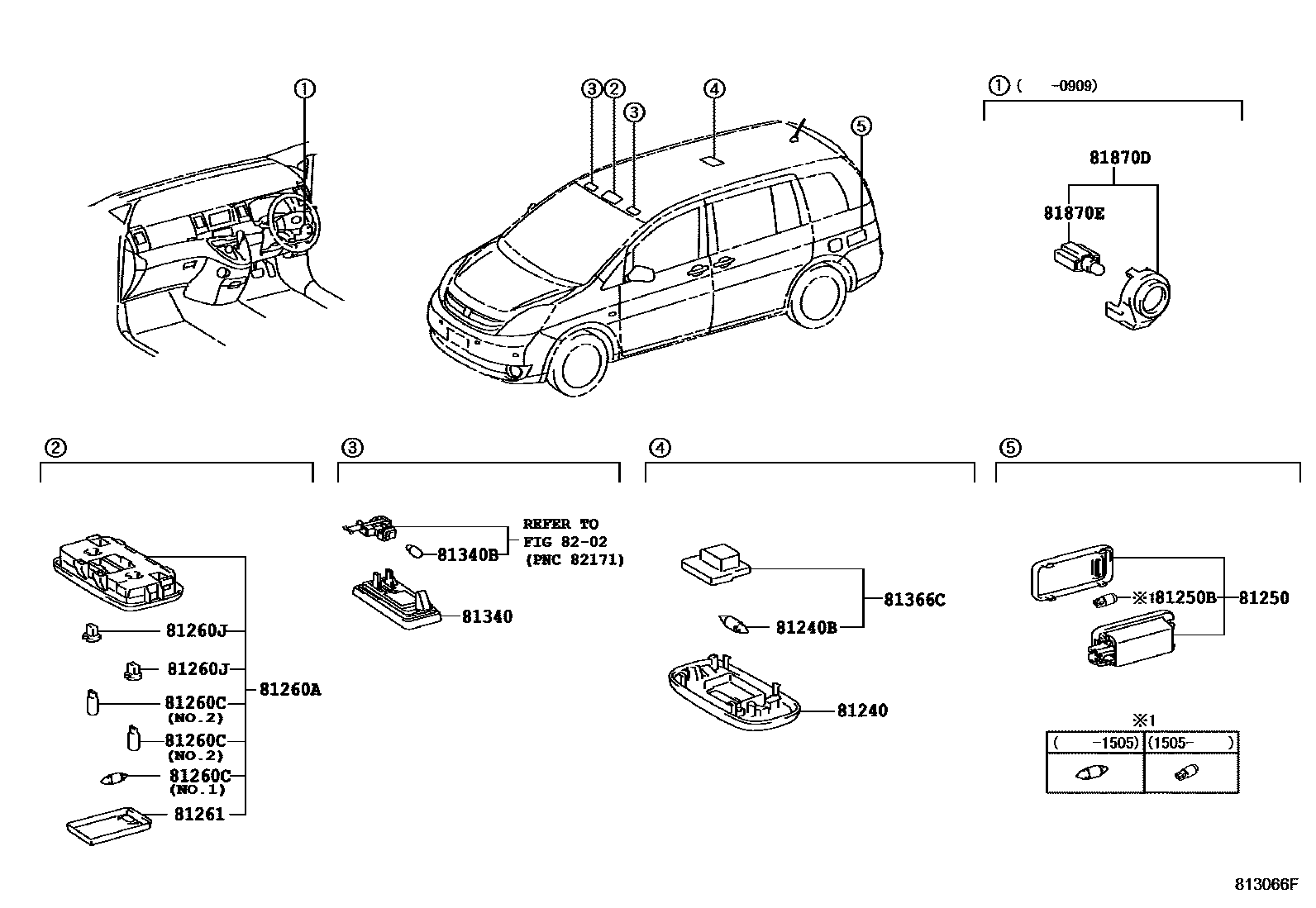

Toyota ISIS — INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-52040-B1i200909-201801

LT.GRAY,TRIM1#

main81240-52040-E0i200705-200909

GREGE,TRIM4#

main81240-68010-B0i200409-200704

LT.GRAY,TRIM1#

main81240-68010-E0i200409-200704

FAWN,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011i200409-200909

81250LAMP ASSY, ROOM, NO.2

main81250-48010i200409-200909

main81330-58010i201505

81250BBULB, ROOM LAMP, NO.2

main99132-12050i201505

main99132-13050i200909-201505

81260ALAMP ASSY, MAP

main81260-44020-B0i200409-200909

LT.GRAY,TRIM1#

main81260-44020-E0i200409-200705

FAWN,TRIM4#

main81260-44020-E1i200705-200909

GREGE,TRIM4#

81260CBULB(FOR MAP LAMP)

main90981-14011i200409-200909

main99132-12050×2i200909

81260JSOCKET, BULB(FOR MAP LAMP)

main83101-20040×2i200409-200909

81261LENS AND COVER, MAP LAMP

main81265-44020i200909

81340LAMP ASSY, VANITY

main81340-30100-E0×2i200409-200705

FAWN,TRIM4#

main81340-30100-E1×2i200909-201206

GREGE,TRIM4#

main81340-30110×2i201206

main81340-30100-B0×2i200705-200909

81340BBULB (FOR VANITY LAMP)

main90981-11062×2i200409-200909

81366CBASE, ROOM LAMP SWITCH

main81366-68010i200409-200909

81870DLAMP ASSY, KEY CYLINDER

main81870-12020i200409-200705

81870EBULB, KEY CYLINDER LAMP

main90010-01056i200409-200705

8202WIRING & CLAMP

→ Go to FIG 82-02

14 parts on this diagram · 1 diagram in section

INTERIOR LAMP for Toyota ISIS

This section contains 14 genuine Toyota parts for the INTERIOR LAMP system of the Toyota ISIS. Key components include: LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LAMP ASSY, ROOM, NO.2, BULB, ROOM LAMP, NO.2, LAMP ASSY, MAP.
