Toyota ISIS — IGNITION COIL & SPARK PLUG / GLOW PLUG

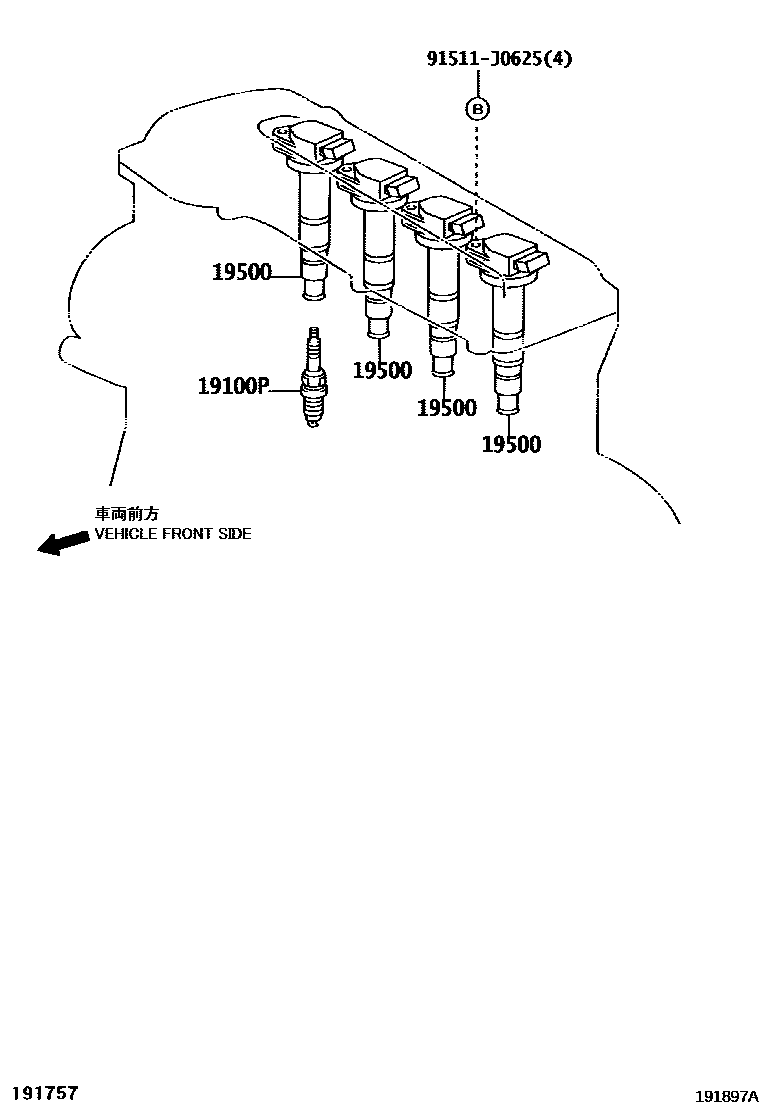

Parts diagram

19100PPLUG, SPARK

main90919-01164×4i200409-200909

main90919-01221×4i200409

main90919-01253×4i200909-201503

main90919-01275×4i201504

19500COIL ASSY, IGNITION

main90080-19015×4i200502-200909

main90080-19019×4i200502-200909

main90919-02239×4i200409-200909

main90919-02248×4i200409

main90919-02252×4i200909-201007

main90919-02258×4i201007

main90919-T2002×4i200502-200909

91511J0625

main91511-J0625

3 parts on this diagram · 3 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota ISIS

This section contains 5 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota ISIS. Key components include: PLUG, SPARK, COIL ASSY, IGNITION.
