Toyota ISIS — HEATING & AIR CONDITIONING - COMPRESSOR

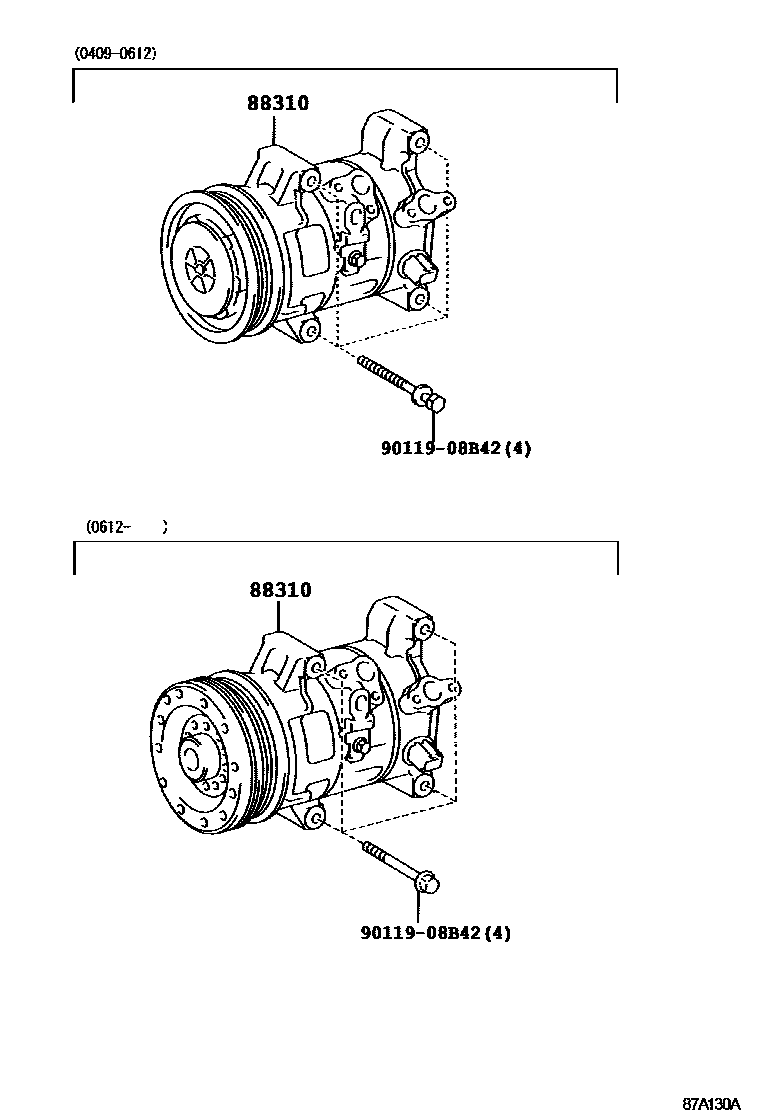

88310COMPRESSOR ASSY, W/PULLEY

main88310-1A770i200909

main88310-21120i200409-200611

main88310-2B691i200612-200909

main88310-68010i200409-200909

main88310-28640i200909-201106

main88310-44280i200409-200909

9011908B42

main90119-08B42

2 parts on this diagram · 5 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota ISIS

This section contains 4 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota ISIS. Key components include: COMPRESSOR ASSY, W/PULLEY, BOLT, IDLE PULLEY.
