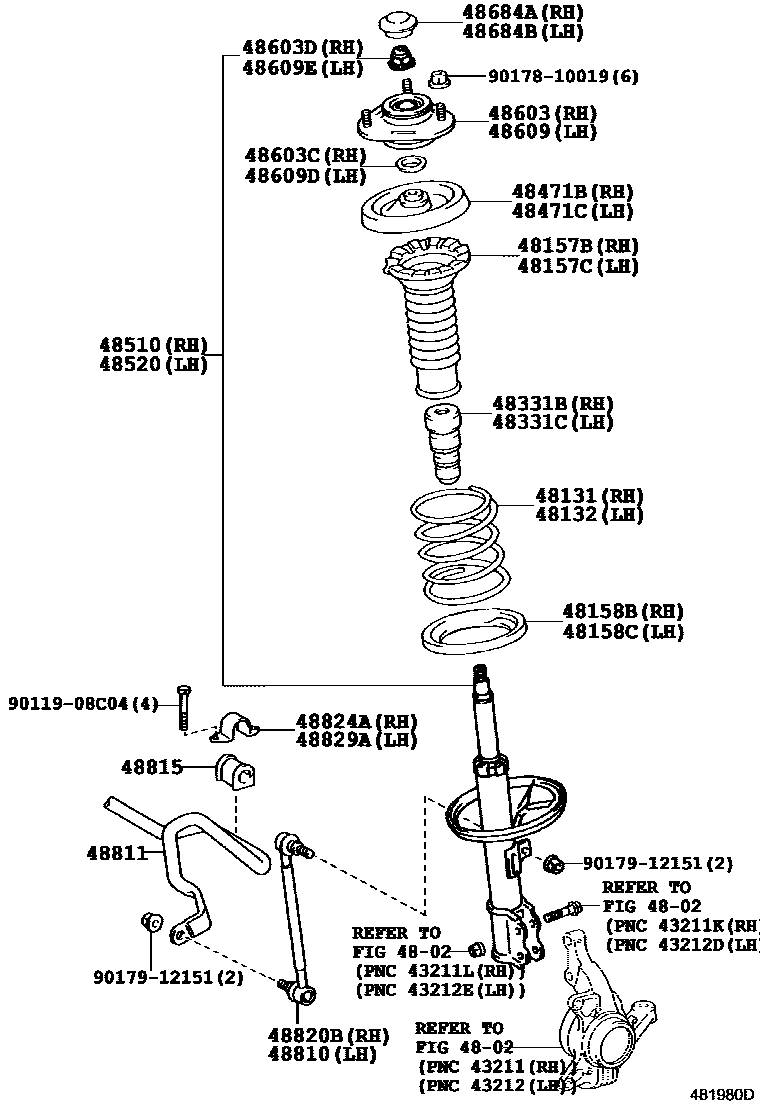

Toyota ISIS — FRONT SPRING & SHOCK ABSORBER
4802FRONT AXLE ARM & STEERING KNUCKLE
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48471BSEAT, FRONT COIL SPRING, UPPER RH
48471CSEAT, FRONT COIL SPRING, UPPER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
48520ABSORBER ASSY, SHOCK, FRONT LH
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9011908C04
main90119-08C04
9017810019
main90178-10019
9017912151
main90179-12151
30 parts on this diagram · 1 diagram in section
FRONT SPRING & SHOCK ABSORBER for Toyota ISIS
This section contains 30 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota ISIS. Key components include: FRONT AXLE ARM & STEERING KNUCKLE, SPRING, FRONT COIL, RH, SPRING, FRONT COIL, LH, INSULATOR, FRONT COIL SPRING, UPPER RH, INSULATOR, FRONT COIL SPRING, UPPER LH.
