Toyota ISIS — EXHAUST GAS RECIRCULATION SYSTEM

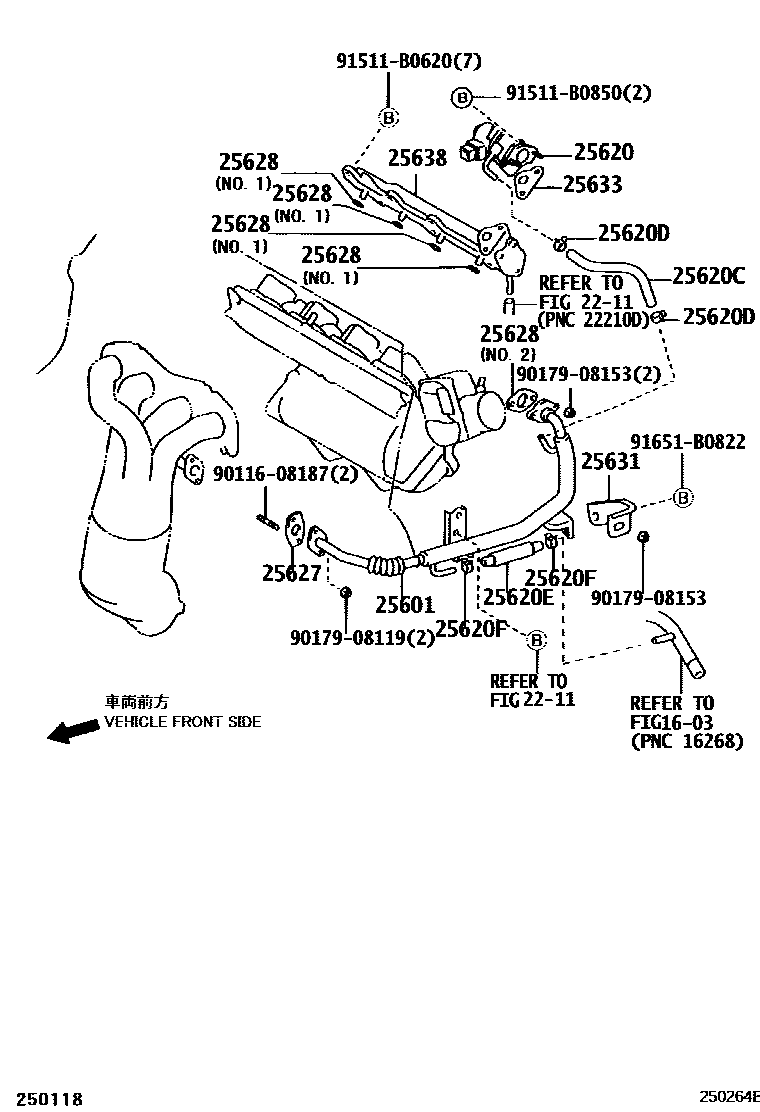

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

25601PIPE SUB-ASSY, EGR, NO.1

main25611-28010i200409-200507

main25611-28011i200507

25620VALVE ASSY, EGR

main25620-28100i200409-200805

main25620-28101i200805

25620CHOSE, WATER BY-PASS, NO.1

main99555-10100i200409

25620DCLIP(FOR WATER BY-PASS HOSE, NO.1)

main96135-51300×2i200409

25620EHOSE, WATER BY-PASS NO.2

main16264-28070i200409

25620FCLIP(FOR WATER BY-PASS HOSE, NO.2)

main96135-51300×2i200409

25627GASKET, EGR VALVE

main25627-74080i200409

25628GASKET, EGR INLET

main25628-28010×4i200409

main25628-28030i200409

25631STAY, EGR PIPE, NO.1

main25631-28010i200409

25633GASKET, EGR VALVE

main25633-28010i200409

25638CHAMBER, EGR DELIVERY

main25638-28030i200409-200805

main25638-28031i200805

9011608187

main90116-08187

9017908119

main90179-08119

9017908153

main90179-08153

91511B0620

main91511-B0620

91511B0850

main91511-B0850

91651B0822

main91651-B0822

19 parts on this diagram · 1 diagram in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota ISIS

This section contains 19 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota ISIS. Key components include: RADIATOR & WATER OUTLET, FUEL INJECTION SYSTEM, PIPE SUB-ASSY, EGR, NO.1, VALVE ASSY, EGR, HOSE, WATER BY-PASS, NO.1.
