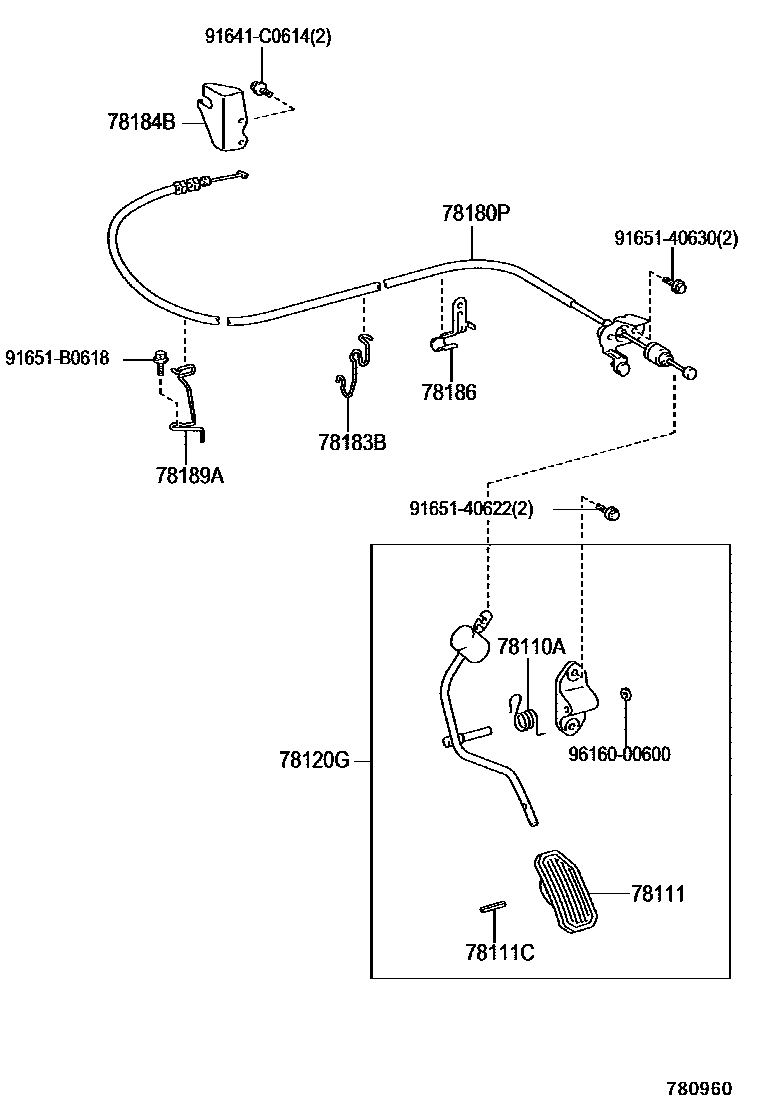

Toyota ISIS — ACCELERATOR LINK

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90959-03307i200409-200909

78111PEDAL, ACCELERATOR

main78111-32020i200409-201405

main78111-44010i201405

78111CPIN (FOR ACCELERATOR PEDAL)

main90254-04019i200409-200909

78120GROD ASSY, ACCELERATOR PEDAL

main78120-12340i200409-200909

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-68011i200409-200909

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-68010i200409-200909

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-12360i200409-200909

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-12370i200409-200909

78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2

main78189-12100i200409-200909

91641C0614

main91641-C0614

9165140622

main91651-40622

9165140630

main91651-40630

91651B0618

main91651-B0618

9616000600

main96160-00600

14 parts on this diagram · 2 diagrams in section

ACCELERATOR LINK for Toyota ISIS

This section contains 16 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota ISIS. Key components include: PEDAL ASSY, ACCELERATOR, SPRING (FOR ACCELERATOR PEDAL ROD), PEDAL, ACCELERATOR, PIN (FOR ACCELERATOR PEDAL), ROD ASSY, ACCELERATOR PEDAL.
