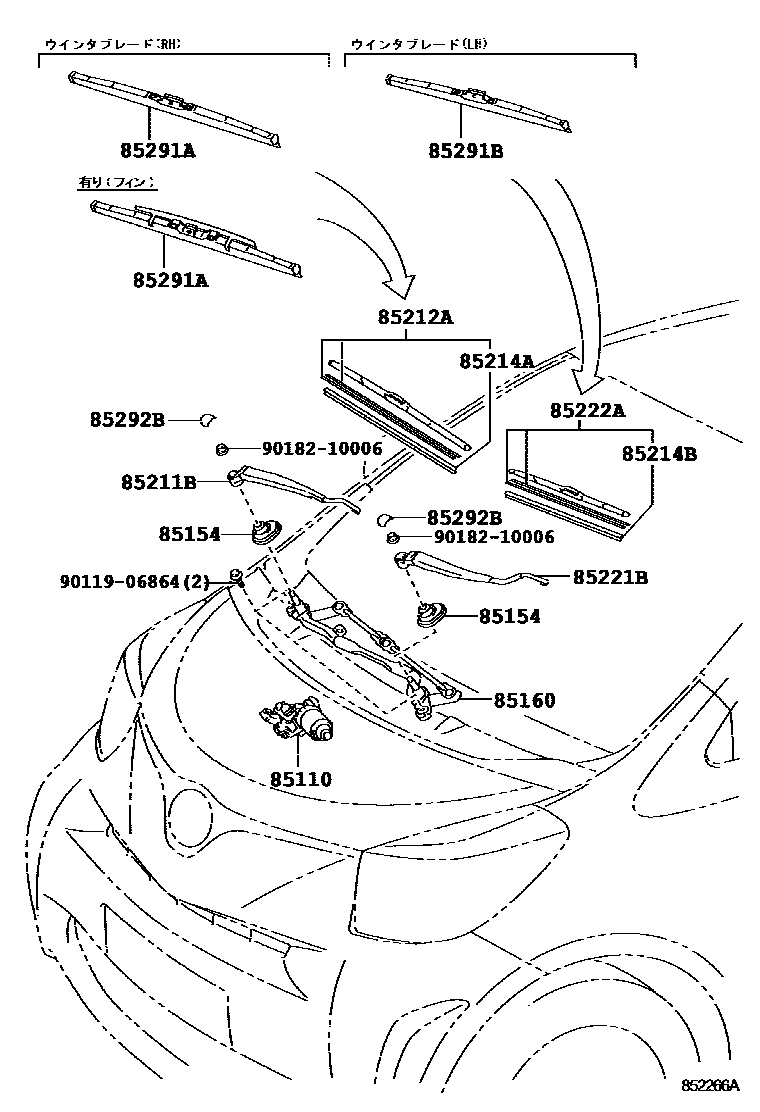

Toyota IQ — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-74010i200811

85154PACKING, FRONT WIPER SHAFT

main85154-74010×2i200811

85160LINK ASSY, WINDSHIELD WIPER

main85150-74010i200811

85211BARM, FRONT WIPER, RH

main85211-74010i200811

85212ABLADE, FR WIPER, RH

main85222-48140i200811

85214ARUBBER, WIPER, RH

main85214-53080i200811-201603

85214BRUBBER, WIPER, LH

main85214-33180i200811-201603

85221BARM, FRONT WIPER, LH

main85221-74010i200811

85222ABLADE, FR WIPER, LH

main85222-30590i200811

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-22090i200811

main85291-74020i200811

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-33050i200811

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2i200811

9011906864

main90119-06864

9018210006

main90182-10006

14 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota IQ

This section contains 14 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota IQ. Key components include: MOTOR ASSY, WINDSHIELD WIPER, PACKING, FRONT WIPER SHAFT, LINK ASSY, WINDSHIELD WIPER, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
