Toyota IQ — TRANSAXLE ASSY(CVT)

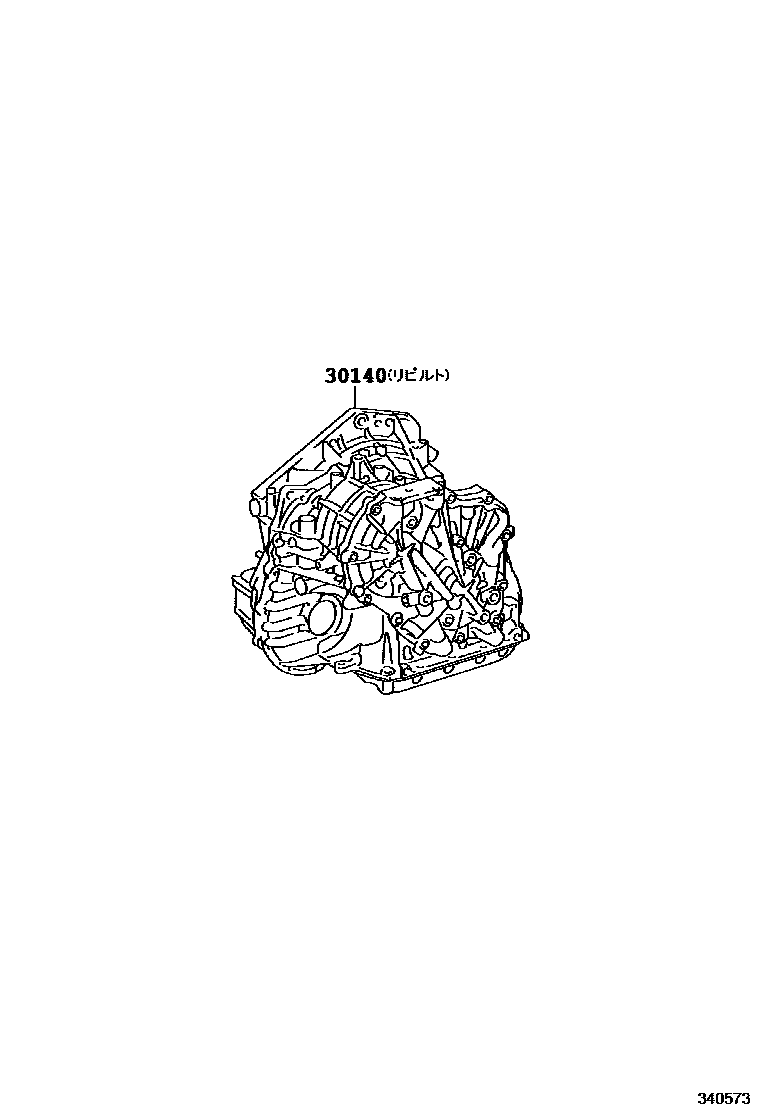

30140TRANSAXLE ASSY, CVT, REBUILT(W/O TORQUE CONVERTER)

main30140-74010i200811-201001

main30140-74011i201001-201012

main30140-74012i201012-201208

main30140-74020i200908-201001

main30140-74021i201001-201012

main30140-74022i201012-201209

main30140-74100i201208-201603

main30140-74130i201209-201603

1 parts on this diagram · 3 diagrams in section

TRANSAXLE ASSY(CVT) for Toyota IQ

This section contains 35 genuine Toyota parts for the TRANSAXLE ASSY(CVT) system of the Toyota IQ. Key components include: TRANSAXLE ASSY, CVT, REBUILT(W/O TORQUE CONVERTER), TRANSAXLE ASSY, CONTINUOUSLY VARIABLE, BOLT(FOR TRANSAXLE & ENGINE SETTING), SEAL, TYPE T OIL(FOR CVT OIL PUMP), PLUG, TRANSAXLE HOLE.
