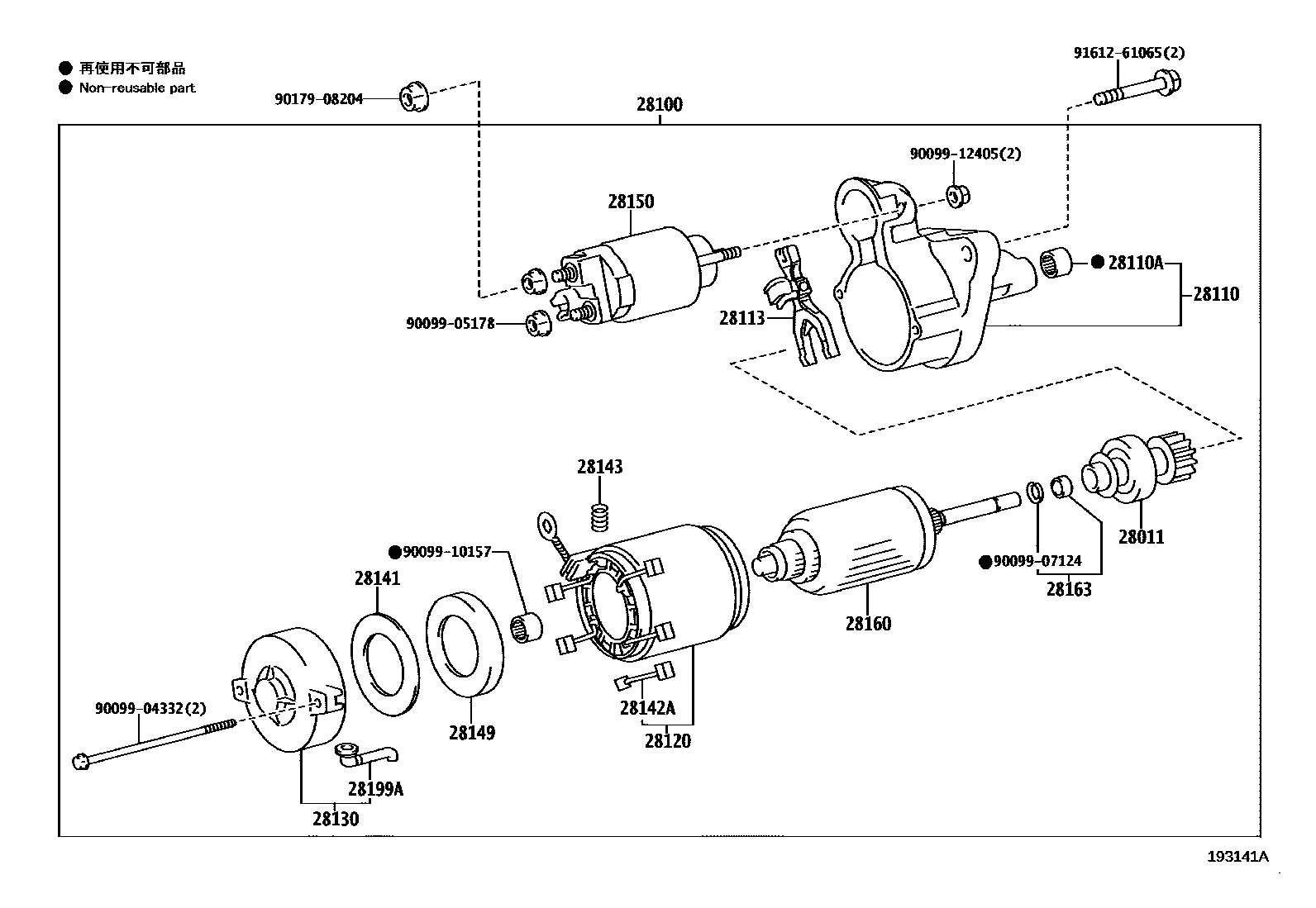

Toyota IQ — STARTER
28011CLUTCH SUB-ASSY, STARTER
28100STARTER ASSY
28110HOUSING ASSY, STARTER DRIVE
28110ABEARING(FOR STARTER HOUSING)
28113LEVER, STARTER PINION DRIVE
28120YOKE ASSY, STARTER
28130FRAME ASSY, STARTER COMMUTATOR END
28141INSULATOR, BRUSH HOLDER
28142ASTARTER KIT
28143SPRING, STARTER BRUSH
28149PLATE, STARTER
28150SWITCH ASSY, MAGNET STARTER
28160ARMATURE ASSY, STARTER
28163NUT OR COLLAR, PINION STOP, STARTER
28199APROTECTOR, DUST STARTER
9009904332
main90099-04332
9009905178
main90099-05178
9009907124
main90099-07124
9009910157
main90099-10157
9009912405
main90099-12405
9017908204
main90179-08204
9161261065
main91612-61065
22 parts on this diagram · 4 diagrams in section
STARTER for Toyota IQ
This section contains 33 genuine Toyota parts for the STARTER system of the Toyota IQ. Key components include: CLUTCH SUB-ASSY, STARTER, CLUTCH SUB-ASSY, STARTER CENTER BEARING, STARTER ASSY, HOUSING ASSY, STARTER DRIVE, BEARING(FOR STARTER HOUSING).
