Toyota IQ — MIRROR

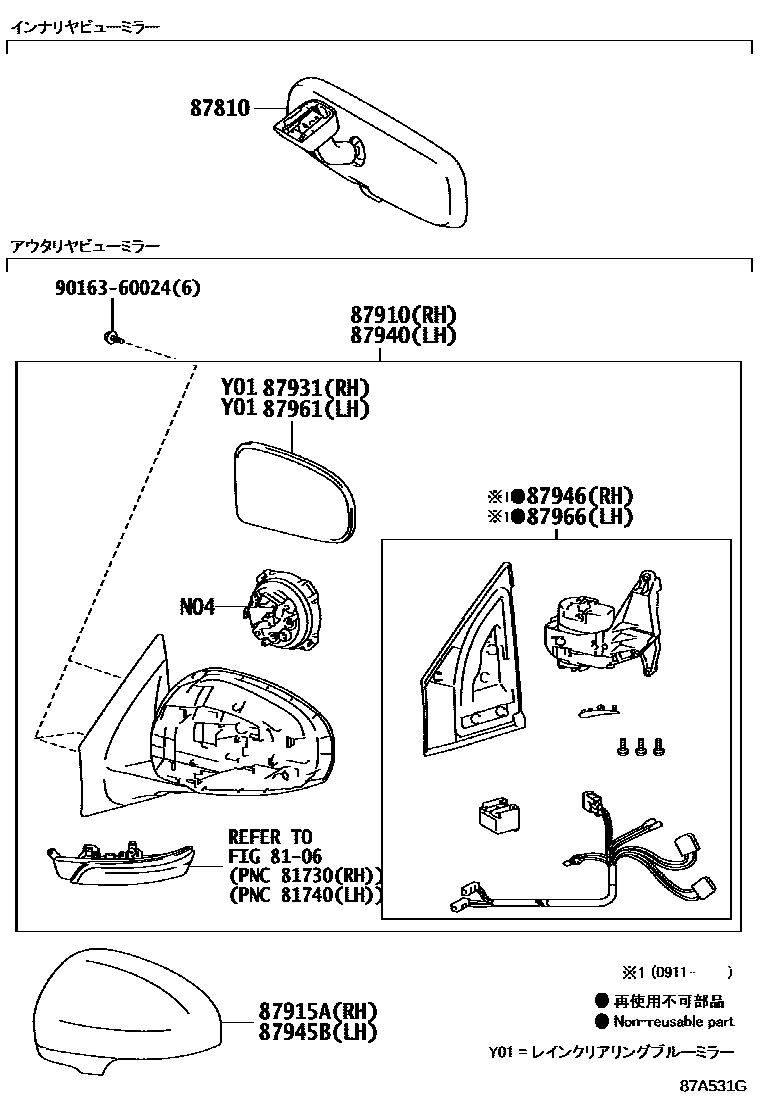

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87810MIRROR ASSY, INNER REAR VIEW
87910MIRROR ASSY, OUTER REAR VIEW, RH
87915ACOVER, OUTER MIRROR, RH
WHITE PEARL CS.,070; WHITE PEARL CS.,070 ,2MJ
SILVER ME.,1F7; SILVER ME.,1F7 ,2ML
GRAY ME.,1G3; GRAY ME.,1G3 ,2MK
BLACK MC.,209
SUPER RED 5,3P0
BRONZE M.M.,4T3
ORANGE ME.,4R8
SILKY GOLD M.M.,5A7
YELLOW,5A6
JADE GREEN METALLIC,6V5
GRAYISH BLUE ME.,8R3
BLUE ME.,8T7
DEEP AMETHYST M.M.,9AH
87940MIRROR ASSY, OUTER REAR VIEW, LH
87945BCOVER, OUTER MIRROR, LH
WHITE PEARL CS.,070; WHITE PEARL CS.,070 ,2MJ
SILVER ME.,1F7; SILVER ME.,1F7 ,2ML
GRAY ME.,1G3; GRAY ME.,1G3 ,2MK
BLACK MC.,209; BLACK MC.,209 ,2LR
SUPER RED 5,3P0
BRONZE M.M.,4T3
ORANGE ME.,4R8
SILKY GOLD M.M.,5A7
YELLOW,5A6
JADE GREEN METALLIC,6V5
GRAYISH BLUE ME.,8R3
BLUE ME.,8T7
DEEP AMETHYST M.M.,2LT ,9AH
87946RETRACTOR, OUTER MIRROR, RH
87966RETRACTOR, OUTER MIRROR, LH
9016360024
main90163-60024
11 parts on this diagram · 1 diagram in section
MIRROR for Toyota IQ
This section contains 11 genuine Toyota parts for the MIRROR system of the Toyota IQ. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH, OUTER MIRROR, RH.
