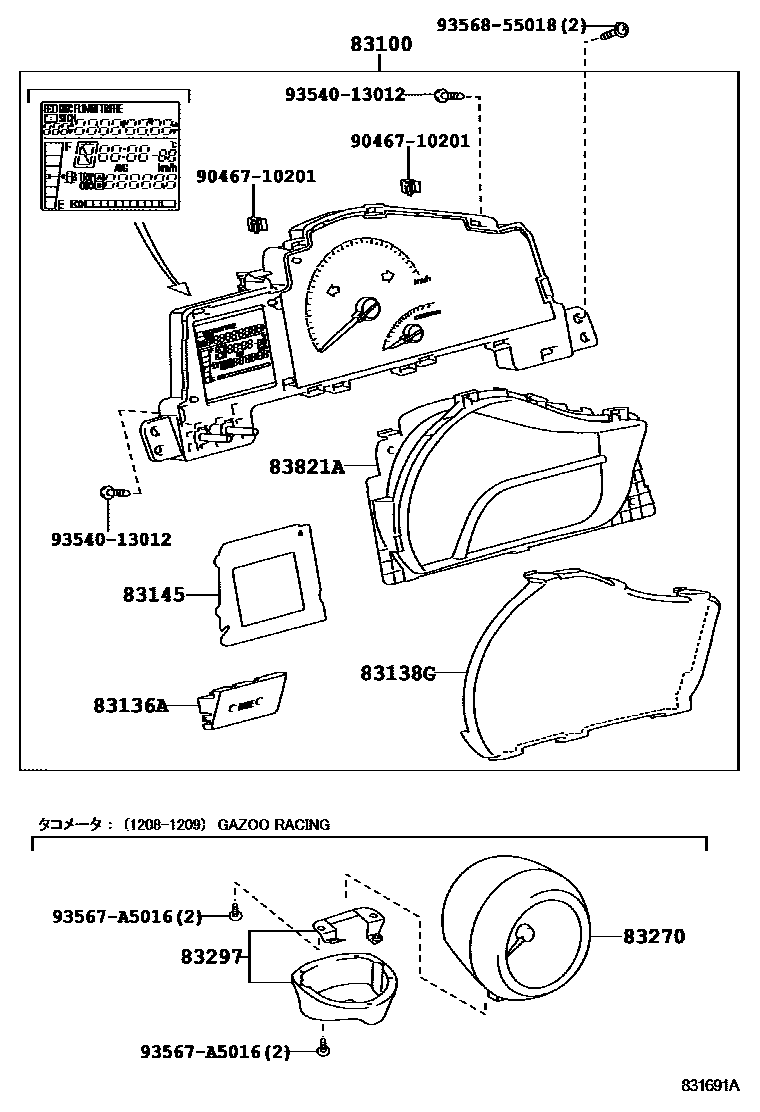

Toyota IQ — METER

83100METER ASSY, COMBINATION

main83800-74020supersedes 83800-74010i200811-200904

main83800-74021supersedes 83800-74011i200904-200907

main83800-74022supersedes 83800-74012i200908-201104

main83800-74023supersedes 83800-74013i201105-201305

main83800-74024supersedes 83800-74014i201305

main83800-74162supersedes 83800-74152i200908-201104

main83800-74163supersedes 83800-74153i201105-201205

main83800-74260i200911-201002

main83800-74270i201008-201104

main83800-74271supersedes 83800-74153i201105-201205

main83800-74280i201008-201104

main83800-74281supersedes 83800-74153i201105-201205

main83800-74282supersedes 83800-74272i201305

main83800-74350supersedes 83800-74360i201011-201104

main83800-74351supersedes 83800-74361i201105-201305

main83800-74352supersedes 83800-74362i201305

main83800-74480i201208-201209

83136ACOVER, COMBINATION METER

main83851-74010i200811

83138GGLASS, COMBINATION METER

main83852-74010i200811

83145LENS, METER, NO.1

main83831-74020i201208-201209

83270TACHOMETER ASSY, ENGINE

main83270-74010i201208-201209

83297BRACKET, ACCESSORY METER

main83297-74010i201208-201209

83821ACOVER, COMBINATION METER, NO.1

main83821-74010i200811

9046710201

main90467-10201

9354013012

main93540-13012

93567A5016

main93567-A5016

9356855018

main93568-55018

11 parts on this diagram · 1 diagram in section

METER for Toyota IQ

This section contains 11 genuine Toyota parts for the METER system of the Toyota IQ. Key components include: METER ASSY, COMBINATION, COVER, COMBINATION METER, GLASS, COMBINATION METER, LENS, METER, NO.1, TACHOMETER ASSY, ENGINE.
