Toyota IQ — IGNITION COIL & SPARK PLUG / GLOW PLUG

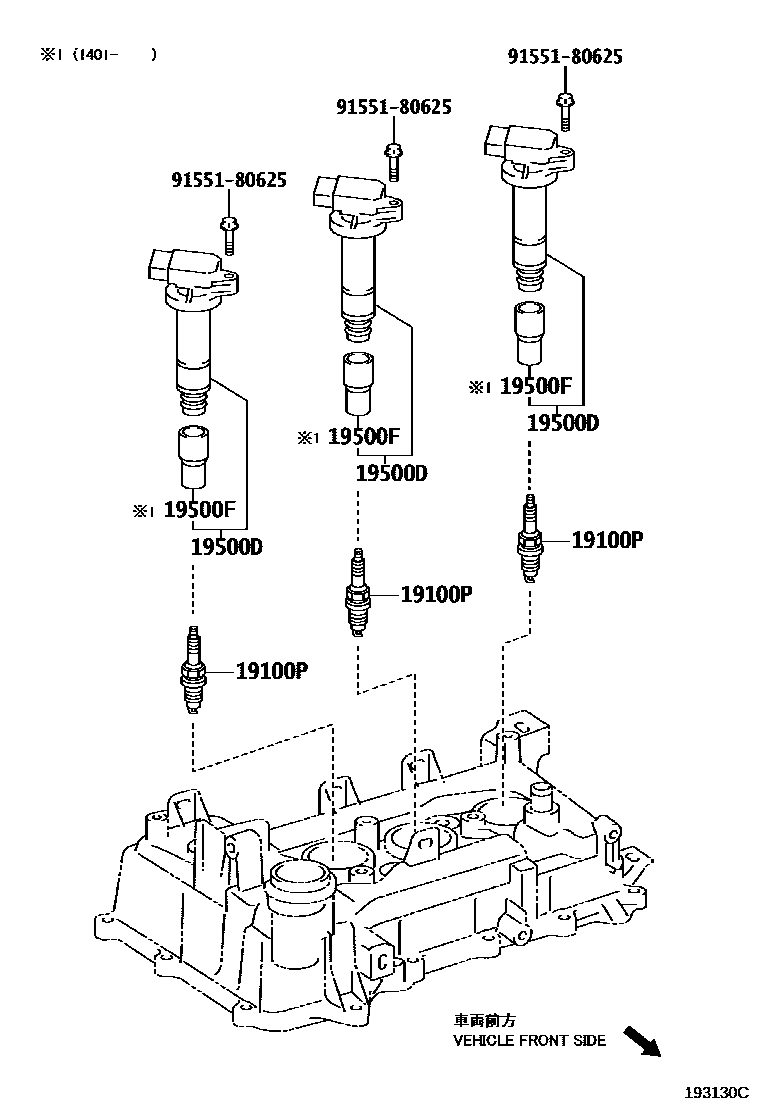

Parts diagram

19100PPLUG, SPARK

main90919-01233×3i200811

main90919-01253×4i200908-201311

main90919-01275×4i201311

main90919-01271×4i201208-201209

19500DCOIL, IGNITION, NO.1

main90919-02240×3i200811-201102

main90919-02257×4i200908

main90919-02265×3i201102

main90919-02256×4i201208-201209

19500FCAP, PLUG

main90919-11009×3i201401

9155180625

main91551-80625

4 parts on this diagram · 2 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota IQ

This section contains 4 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota IQ. Key components include: PLUG, SPARK, COIL, IGNITION, NO.1, CAP, PLUG.
