Toyota IQ — FRONT AXLE HUB

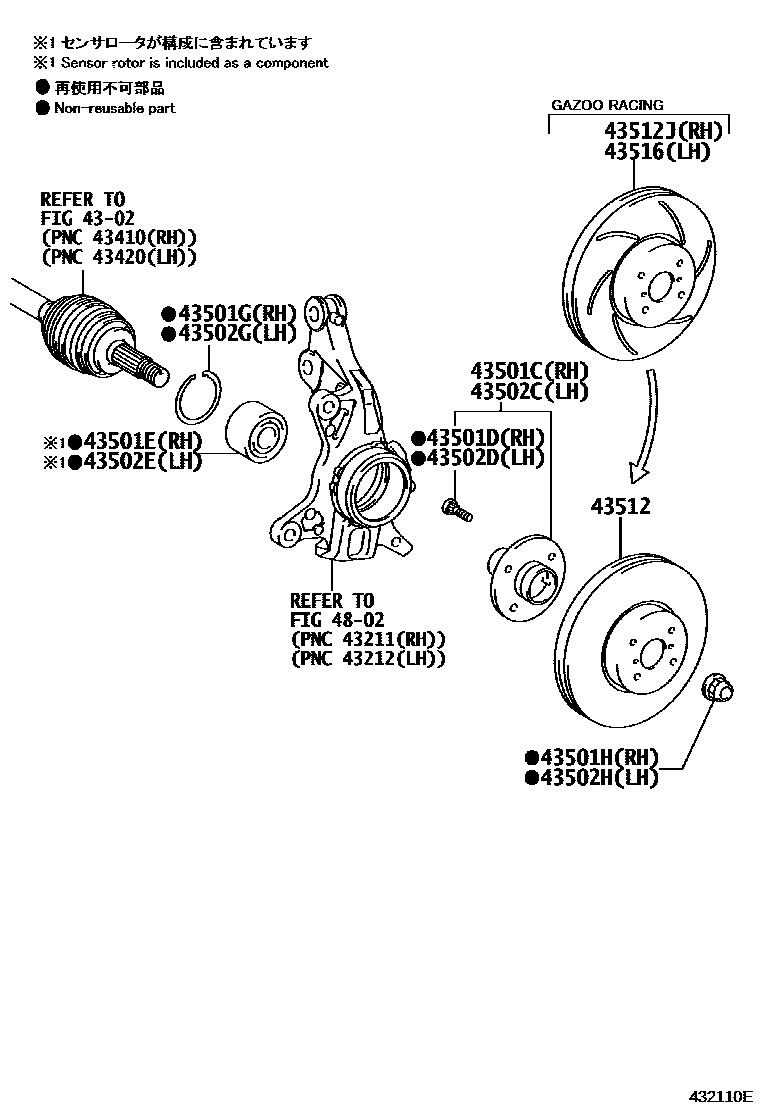

Parts diagram

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-52010i200811

main43502-52030i200908

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×4i200811

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-40079i200908-201603

main90369-38023i200811-201603

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-76007i200811

main90521-80003i200908

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i200811

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-52010i200811

main43502-52030i200908

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×4i200811

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-40079i200908-201603

main90369-38023i200811-201603

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-76007i200811

main90521-80003i200908

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i200811

43512DISC, FRONT

main43512-74010×2i200811-201603

43512JDISC, FRONT RH

main43512-74020i201208-201209

43516DISC, FRONT LH

main43516-74010i201208-201209

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

15 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota IQ

This section contains 15 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota IQ. Key components include: FRONT DRIVE SHAFT, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), BEARING (FOR FRONT AXLE HUB RH), RING, HOLE SNAP (FOR FRONT AXLE HUB RH).
