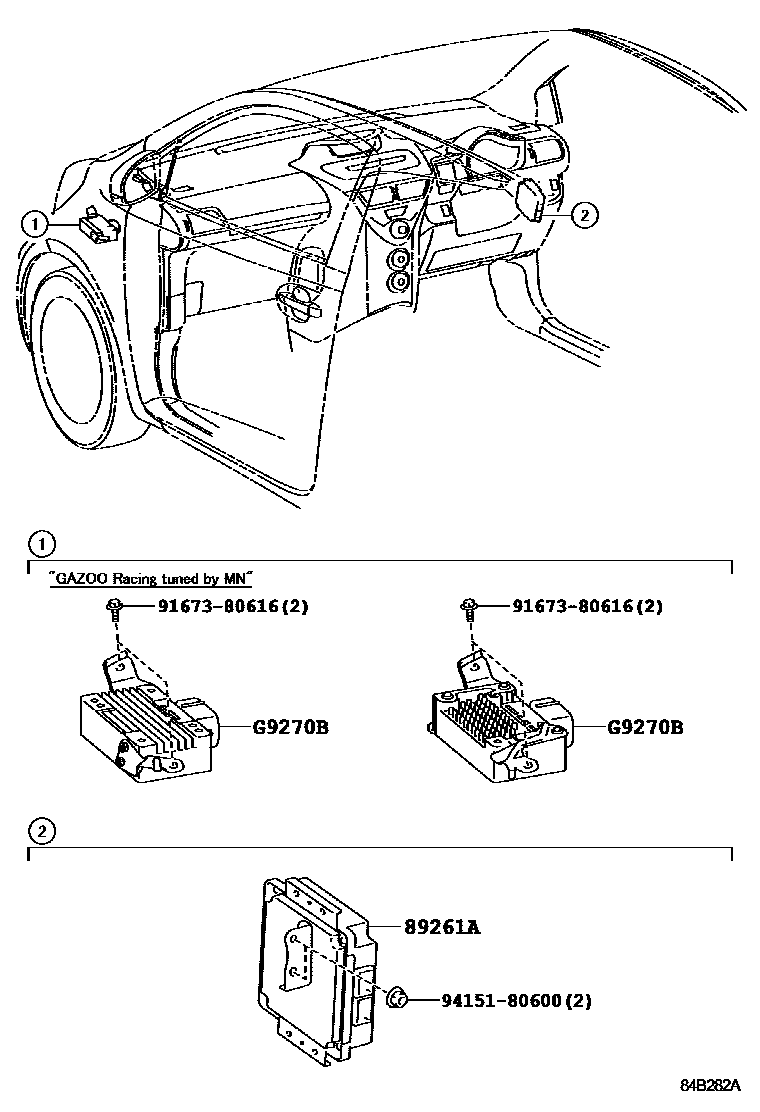

Toyota IQ — ECO-RUN SYSTEM

89261ACOMPUTER, ENGINE STOP AND START

main89261-74010iNGJ10..6F201011-201111

main89261-74011iNGJ10..6F201112

G9270BCONVERTER ASSY, ECO RUN VEHICLE

mainG92C074020iNGJ10..6F201011-201310

mainG92C074021iNGJ10..6F201311

subG92C0-52050

sub90159-50385

subF1334-74020

subF1335-74020

mainG92C074011iNGJ10..CVFC200911-201002

9167380616

main91673-80616

9415180600

main94151-80600

4 parts on this diagram · 1 diagram in section
