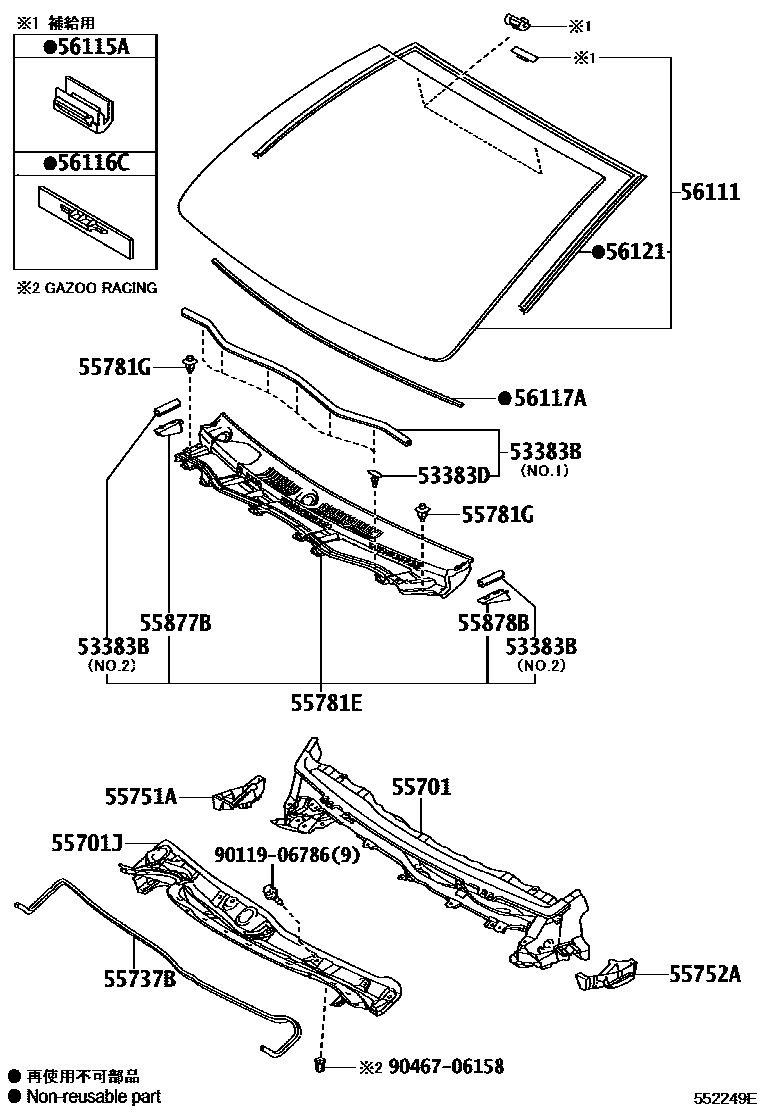

Toyota IQ — COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-74010i200811

main53383-74020×2i200811

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150×6i200811

55701PANEL SUB-ASSY, COWL

main55700-74020i200811-201603

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-74020i200811

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-74010i200811-201302

main55737-74030i201303

55751ASHIELD, COWL VENTILATOR SPLASH, RH

main55751-74010i200811

55752ASHIELD, COWL VENTILATOR SPLASH, LH

main55752-74010i200811

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-74040supersedes 55708-74020i200811

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07076-C0×2i200811-201603

BLACK

55877BCOVER, COWL VENT, RH

main55877-74010i200811

55878BCOVER, COWL VENT, LH

main55878-74010i200811

56111GLASS, WINDSHIELD

main56101-74020supersedes 56101-74010i200811

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100×2i200811

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2i200811

56117ADAM, WINDOW GLASS ADHESIVE

main56117-74010i200811

56121WEATHERSTRIP, WINDSHIELD

main56121-74010i200811

9011906786

main90119-06786

9046706158

main90467-06158

18 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota IQ

This section contains 18 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota IQ. Key components include: SEAL, HOOD TO COWL TOP, CLIP(FOR HOOD TO COWL TOP SEAL), PANEL SUB-ASSY, COWL, PANEL SUB-ASSY, COWL TOP, OUTER, SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1.
