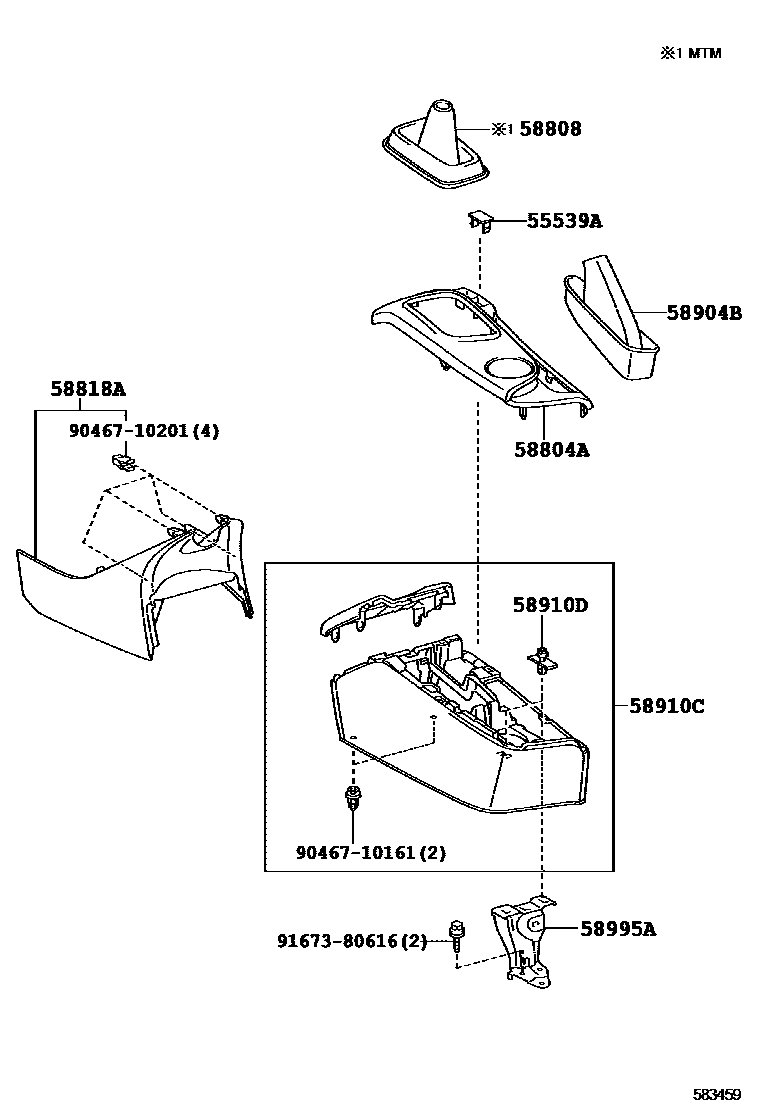

Toyota IQ — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-52060-B0supersedes 55539-52060-B0iKGJ10..100X200811-201603

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-74010-C0iNGJ10..6F201011-201603

BLACK,TRIM1#,4#,7#,8#

main58804-74020-C0iKGJ10..100X200811-201603

BLACK,TRIM1#,4#,5#,7#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-74010-C0iNGJ10..6F201011-201603

BLACK,TRIM1#,4#,7#,8#

main58808-74010-B0iNGJ10..CVFC200911-201002

main58808-74020-C0iNGJ10..6F201208-201209

58818ACOVER, CONSOLE BOX, FR

main58818-74040-C0supersedes 58818-74020-C0iKGJ10..100X200811-201603

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-74010-B0iKGJ10..100X200811-201005

DK.GRAY,TRIM1#,4#,5#

main58904-74010-C0iKGJ10..100X201005-201603

BLACK,TRIM1#,4#,5#,7#

main58904-74030-C0iNGJ10..6F201208-201209

58910CBOX ASSY, CONSOLE, REAR

main58910-74010-C0iKGJ10..100X200811-201603

BLACK,TRIM1#,4#,5#,7#

58910DCLIP(FOR CONSOLE BOX)

main55345-74010×2iKGJ10,NGJ10200811

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-74010iKGJ10,NGJ10200811

9046710161

main90467-10161

9046710201

main90467-10201

9167380616

main91673-80616

11 parts on this diagram · 1 diagram in section
