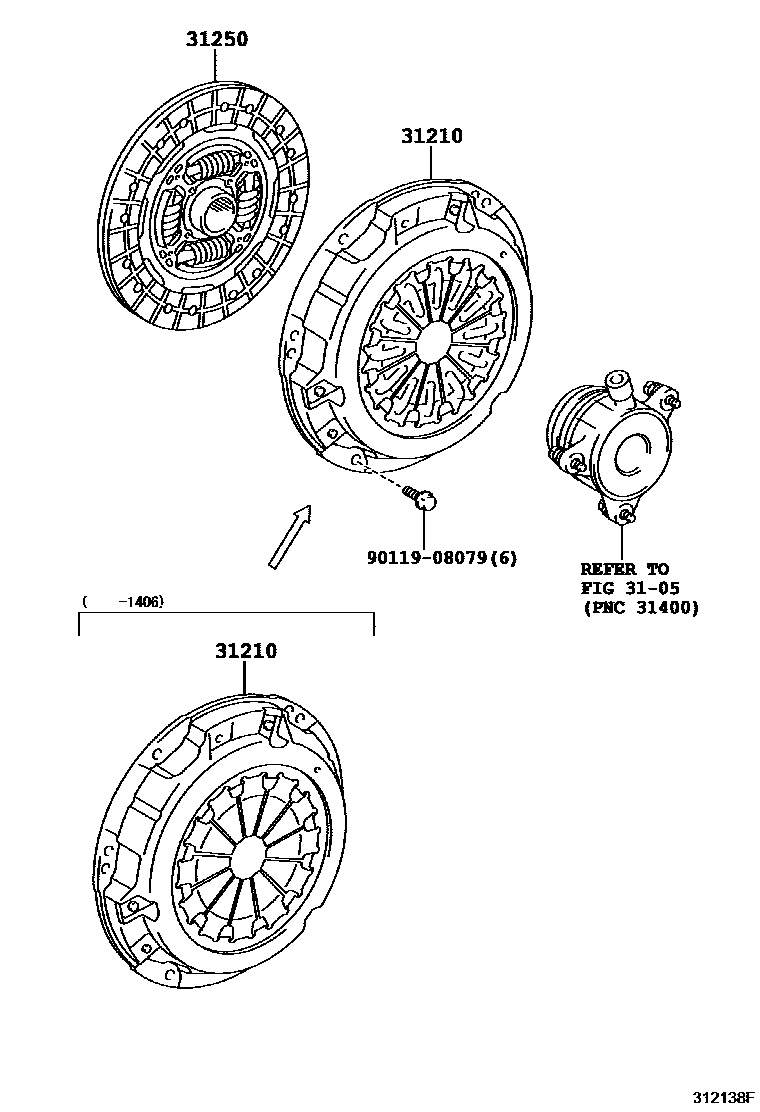

Toyota IQ — CLUTCH & RELEASE FORK

3105CLUTCH RELEASE CYLINDER

→ Go to FIG 31-05

31210COVER ASSY, CLUTCH

main31210-52130i201011-201406

main31210-12310supersedes 31210-52170i201208-201209

31250DISC ASSY, CLUTCH

main31250-52210i201011-201603

main31250-52120i200911-201002

main31250-74030i201208-201209

9011908079

main90119-08079

4 parts on this diagram · 2 diagrams in section

CLUTCH & RELEASE FORK for Toyota IQ

This section contains 4 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota IQ. Key components include: CLUTCH RELEASE CYLINDER, COVER ASSY, CLUTCH, DISC ASSY, CLUTCH.
