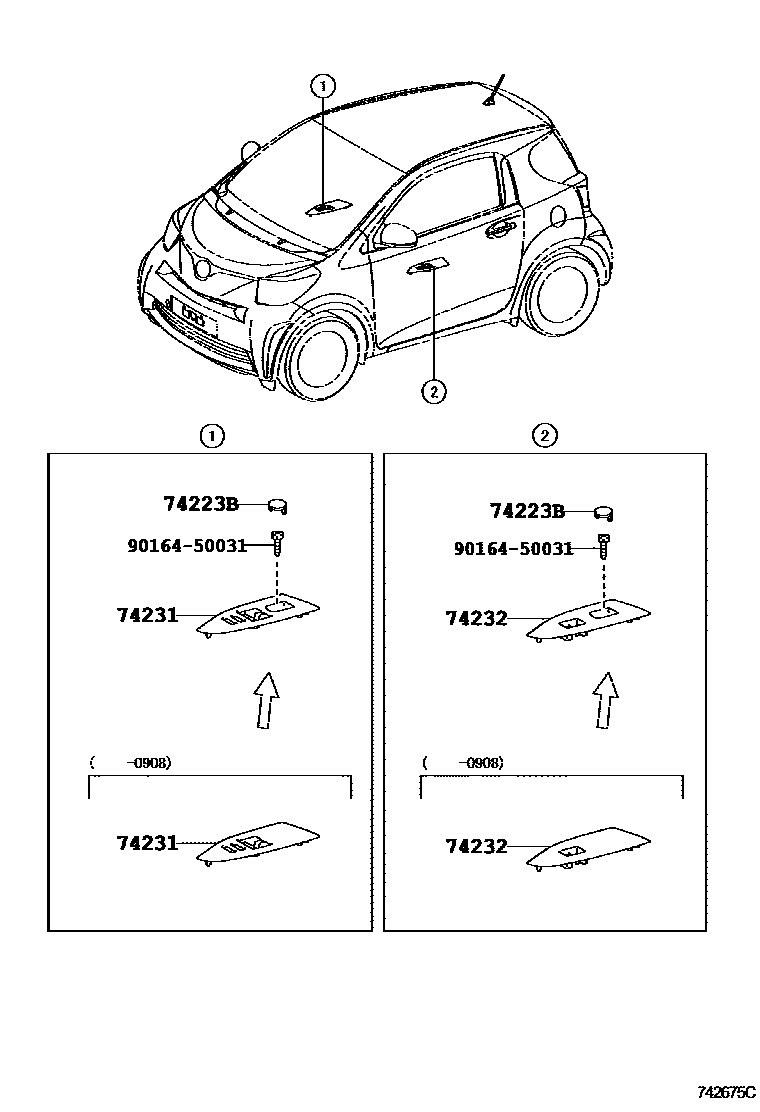

Toyota IQ — ARMREST & VISOR

74223BCAP, DOOR ARMREST, FRONT

main74223-12130-B2×2i201205-201603

LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,7#; LT.GRAY,TRIM1#,7#,8#

main74223-12130-E1×2i200908-201005

PLUM,TRIM1#,4#; PLUM,TRIM1#,4#,5#

main74223-12130-C0×2i201208-201209

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-74020-E0i200811-200908

PLUM,TRIM4#,5#

main74231-74030-B0i201005-201205

LT.GRAY,TRIM14,15; LT.GRAY,TRIM14,7#; LT.GRAY,TRIM14,7#,8#

main74231-74030-E0i201005-201205

PLUM,TRIM10,11,12,13,4#,5#; PLUM,TRIM10,4#

main74231-74030-C0i201208-201209

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-74020-E0i200811-200908

PLUM,TRIM4#,5#

main74232-74030-B0i201005-201205

LT.GRAY,TRIM14,15; LT.GRAY,TRIM14,7#; LT.GRAY,TRIM14,7#,8#

main74232-74030-E0i200908-201005

PLUM,TRIM1#,4#; PLUM,TRIM1#,4#,5#

main74232-74030-C0i201208-201209

9016450031

main90164-50031

4 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota IQ

This section contains 15 genuine Toyota parts for the ARMREST & VISOR system of the Toyota IQ. Key components include: CAP, DOOR ARMREST, FRONT, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, VISOR ASSY, RH, COVER, VISOR BRACKET, RH.
