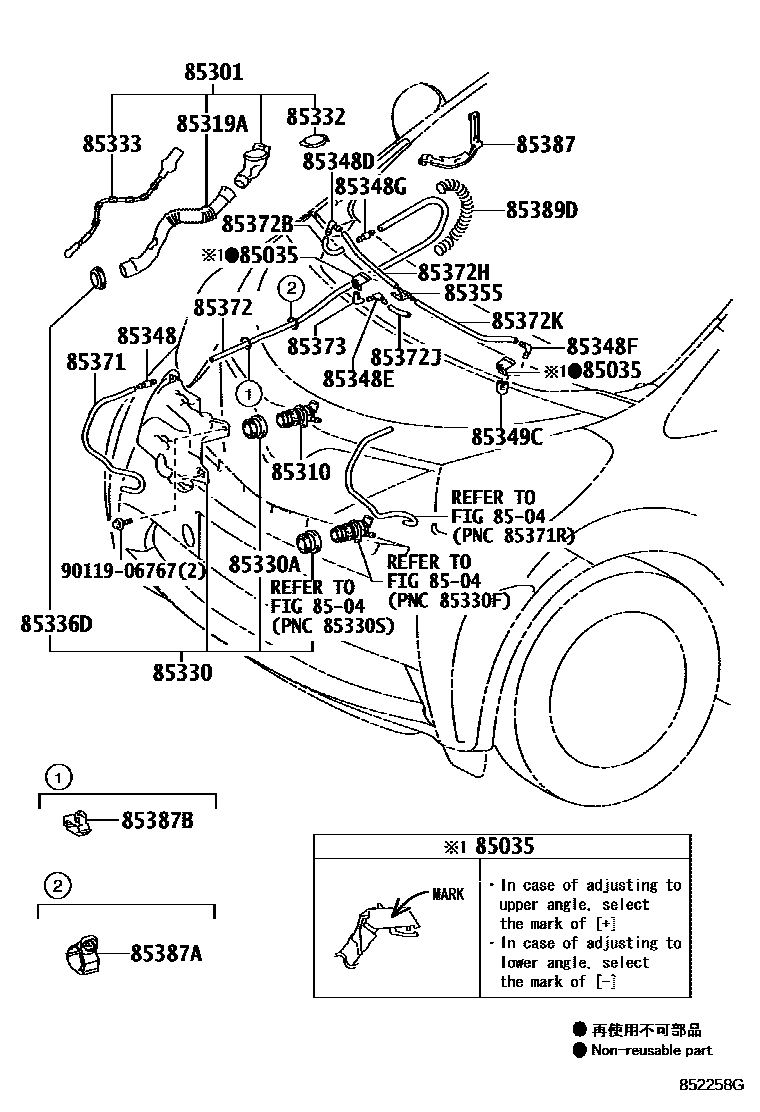

Toyota IQ — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
MARK +1
MARK +3
MARK -1
MARK +1
MARK +3
MARK -1
8504REAR WASHER
85301INLET SUB-ASSY, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85319AHOSE, INLET
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85333FILTER, WINDSHIELD WASHER JAR
85336DPACKING, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85349CJOINT, WINDSHIELD WASHER ELBOW, NO.4
85355VALVE, WINDSHIELD WASHER HOSE
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=540)
L=716
L=540
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=900)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=95)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1450(*H,L=390)
L=390
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
L=80
L=1450(*H,L=60)
L=60
85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
L=1000(*H,L=520)
L=520
L=450
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=15
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
85387ACLAMP, WASHER, NO.2
85387BCLAMP, WASHER, NO.3
85389DSPRING(WASHER HOSE)
9011906767
main90119-06767
29 parts on this diagram · 2 diagrams in section
WINDSHIELD WASHER for Toyota IQ
This section contains 31 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota IQ. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, HOSE, INLET.
