83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28010iNUJ10200811-201205

DENSO

main83530-28020iKGJ10,NGJ10200811-201405

DENSO

main83530-60010iNUJ10200811-201205

YAZAKI

main83530-60020iKGJ10,NGJ10200811-201405

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-74010iKGJ10,NGJ10,NUJ10..MTM200811-201405

84540SWITCH ASSY, NEUTRAL START

main84540-74010iKGJ10,NGJ10..CVFC200811-201405

89437COVER, SENSOR

main89437-12080iKGJ10200912-201405

89465SENSOR, OXYGEN

main89465-74010iKGJ10200811-201305

main89465-74020iNGJ10200905-201005

main89465-74030iNGJ10201005-201405

main89465-74040iKGJ10201305-201405

89467BSENSOR, AIR FUEL RATIO

main89467-74010iKGJ10200811-201305

main89467-74020iNUJ10200811-201111

main89467-74030iNGJ10200905-201405

main89467-74050iNUJ10201112-201205

main89467-74060iKGJ10201305-201405

89615SENSOR, KNOCK CONTROL

main89615-20090iKGJ10,NGJ10200811-201405

8271574010BRACKET,WIRING HARNESS CLAMP

main82715-74010

8271574020BRACKET,WIRING HARNESS CLAMP

main82715-74020

8271574030BRACKET,WIRING HARNESS CLAMP

main82715-74030

8271574110BRACKET,WIRING HARNESS CLAMP

main82715-74110

9043018008

main90430-18008

9155180816

main91551-80816

9155180830

main91551-80830

9165140620

main91651-40620

9167180612

main91671-80612

9167180816

main91671-80816

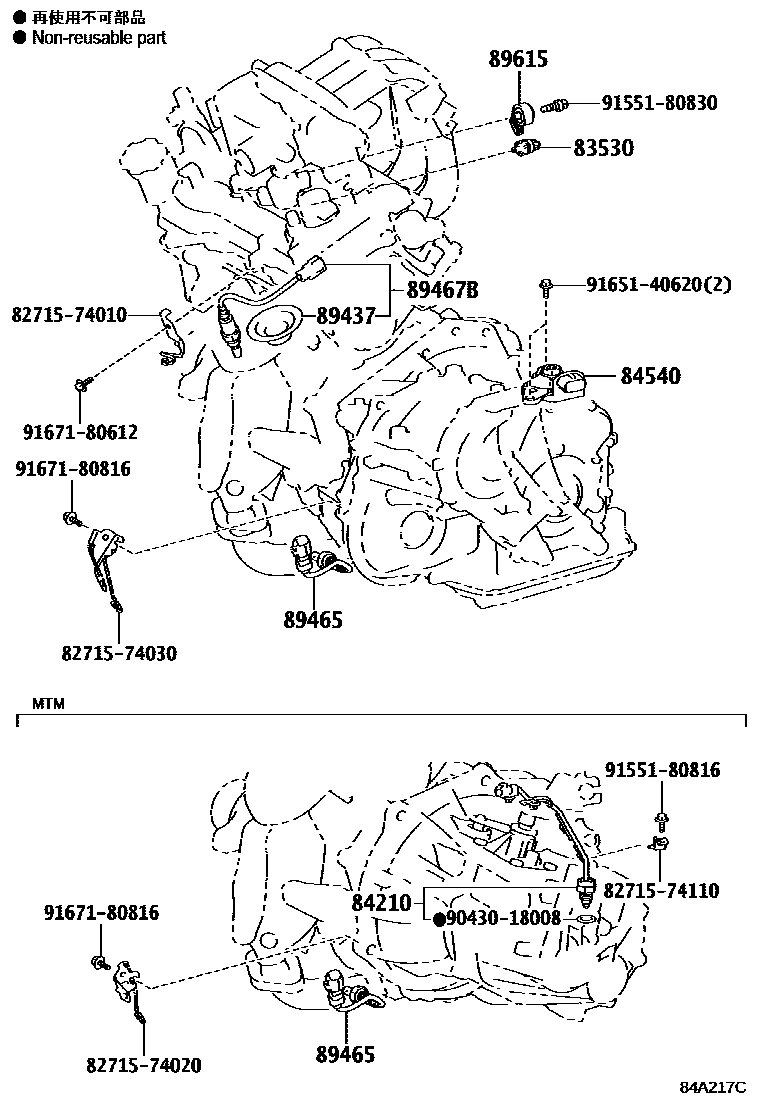

17 parts on this diagram · 11 diagrams in section
