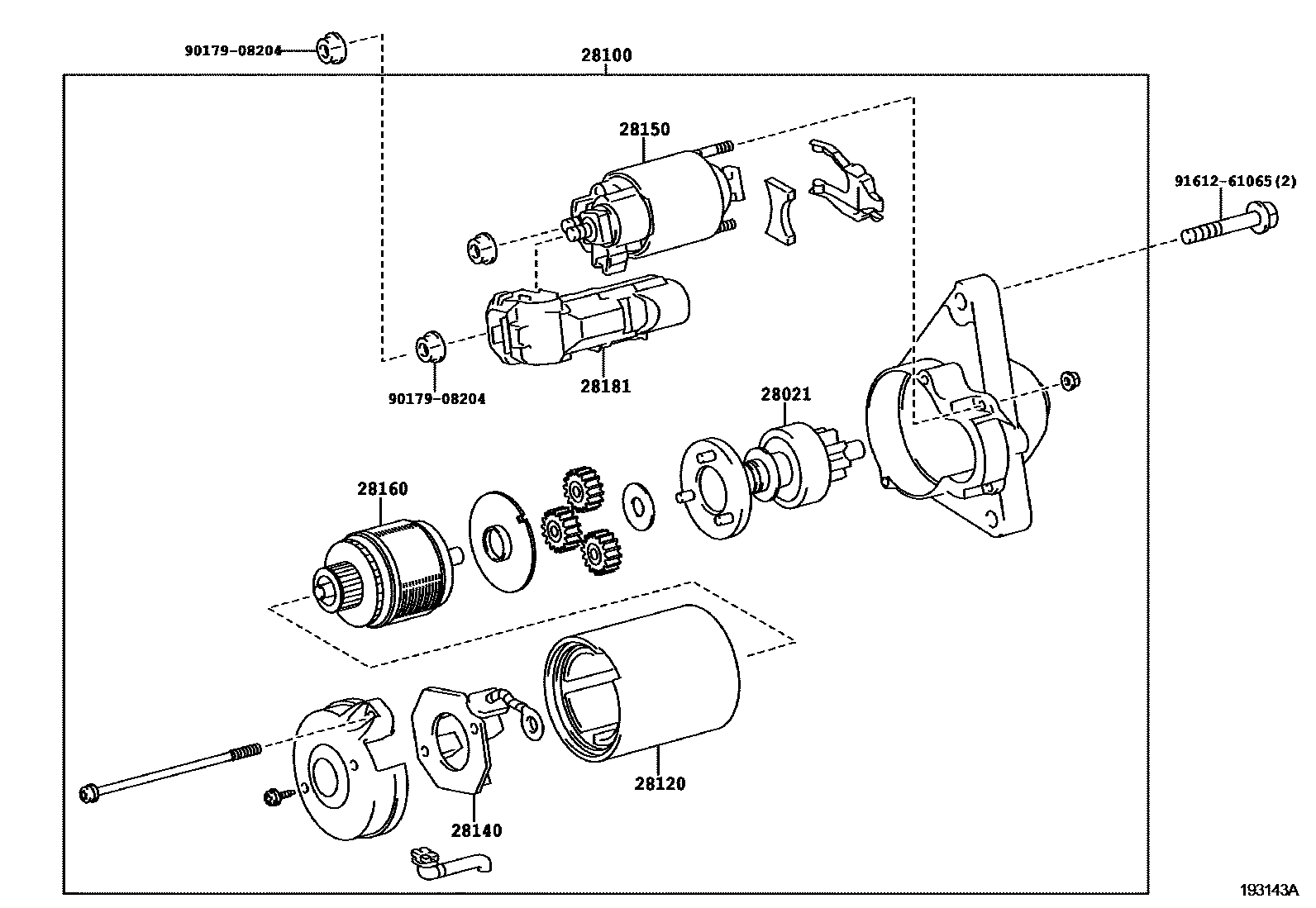

Toyota IQ — STARTER

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-33090i200811-201205

main28021-47110i200905-201205

main28021-70020i201101-201405

main28021-23030i201101-201405

COLD AREA SPEC(A RANK); COLD AREA SPEC(S RANK)

main28021-33100i200811-201205

COLD AREA SPEC(A RANK); COLD AREA SPEC(S RANK)

28100STARTER ASSY

main28100-33090i200811-201205

12V 1.6KW

main28100-40120i200811-200906

12V 0.8KW

main28100-40121i200907-201405

12V 0.8KW

main28100-47140i200905-200906

12V 0.8KW

main28100-47141i200907-201405

12V 0.8KW

main28100-47160i200905-201004

12V 1.6KW

main28100-47161i201005-201012

12V 1.6KW

main28100-47162i201101-201205

12V 1.6KW

main28100-33100i200811-201205

12V 2.0KW,COLD AREA SPEC(A RANK); 12V 2.0KW,COLD AREA SPEC(S RANK)

main28100-40130i200811-200906

12V 1.0KW,COLD AREA SPEC(A RANK); 12V 1.0KW,COLD AREA SPEC(S RANK)

main28100-40131i200907-201405

12V 1.0KW,COLD AREA SPEC(A RANK); 12V 1.0KW,COLD AREA SPEC(S RANK)

main28100-47150i200905-200906

12V 1.0KW,COLD AREA SPEC(A RANK); 12V 1.0KW,COLD AREA SPEC(S RANK)

main28100-47151i200907-201405

12V 1.0KW,COLD AREA SPEC(A RANK); 12V 1.0KW,COLD AREA SPEC(S RANK)

28120YOKE ASSY, STARTER

main28120-33090i200811-201205

main28120-40120i200811-201405

main28120-47120i200905-201405

main28120-47160i200905-201205

main28120-38020i200811-201205

COLD AREA SPEC(A RANK); COLD AREA SPEC(S RANK)

main28120-40130i200811-201405

COLD AREA SPEC(A RANK); COLD AREA SPEC(S RANK)

28140HOLDER ASSY, STARTER BRUSH

main28140-37050i200811-201205

main28140-47110i200905-201205

main28140-70020i200905-201405

28150SWITCH ASSY, MAGNET STARTER

main28150-37020i200811-201205

main28150-40090i200811-201405

main28150-40130i200907-201405

28160ARMATURE ASSY, STARTER

main28160-33090i200811-201205

main28160-40070i200811-201405

main28160-70021i200905-201405

main28180-47110i200905-201205

main28160-38020i200811-201205

COLD AREA SPEC(A RANK); COLD AREA SPEC(S RANK)

main28160-70050i200811-201405

COLD AREA SPEC(A RANK); COLD AREA SPEC(S RANK)

28181TERMINAL, STARTER

main28181-33020i200811-201003

9017908204

main90179-08204

9161261065

main91612-61065

9 parts on this diagram · 6 diagrams in section

STARTER for Toyota IQ

This section contains 34 genuine Toyota parts for the STARTER system of the Toyota IQ. Key components include: CLUTCH SUB-ASSY, STARTER, CLUTCH SUB-ASSY, STARTER CENTER BEARING, STARTER ASSY, HOUSING ASSY, STARTER DRIVE, BEARING(FOR STARTER HOUSING).
