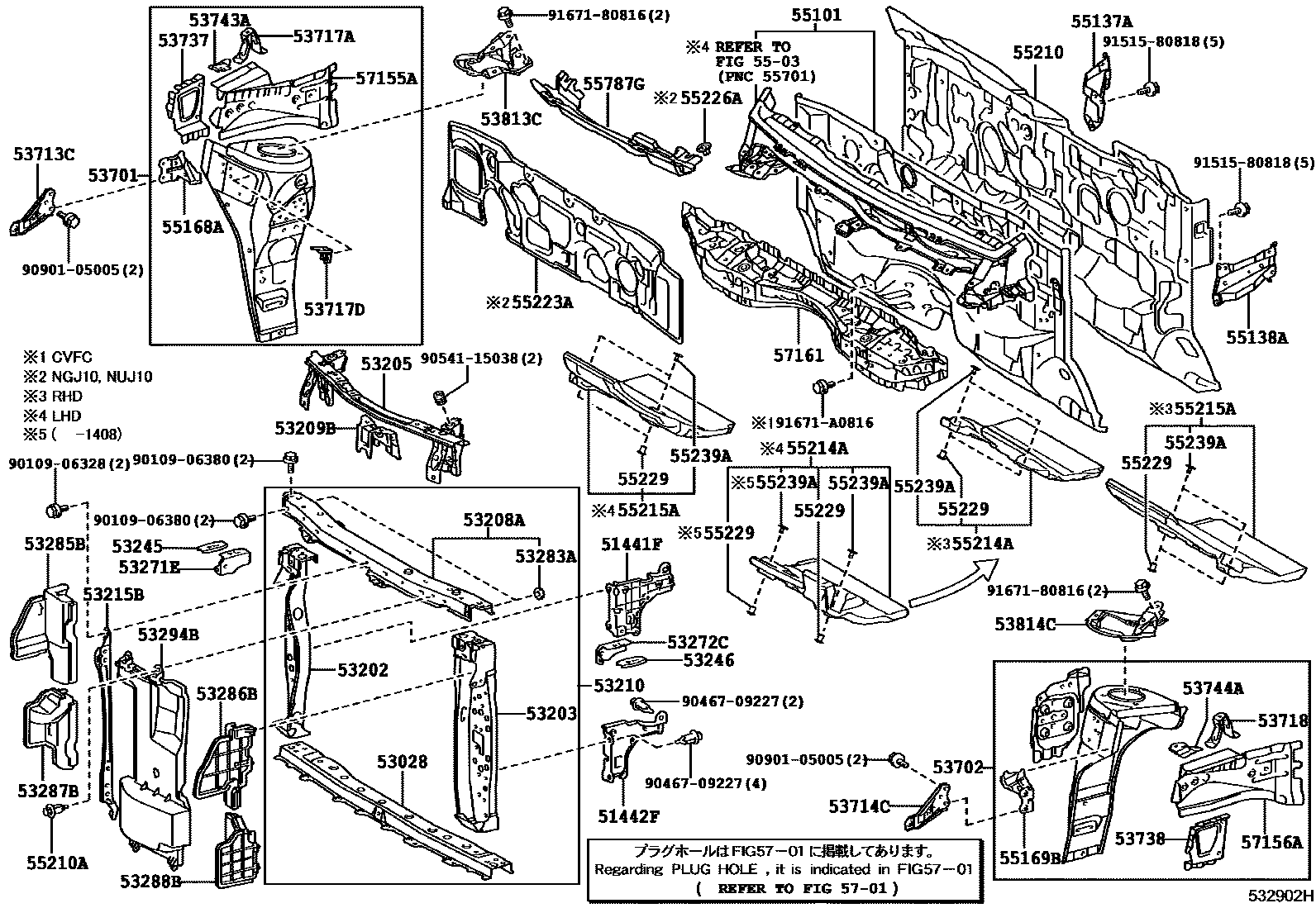

Toyota IQ — FRONT FENDER APRON & DASH PANEL

51441FCOVER, ENGINE UNDER, RH

main51440-74010i200811-201205

main51451-74010i200811-201405

51442FCOVER, ENGINE UNDER, LH

main51450-74010i200811-201205

main51452-74010i200811-201405

53028SUPPORT SUB-ASSY, RADIATOR, LOWER

main53028-74010i200811-201405

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-74010i200811-201405

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-74010i200811-201405

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-74010i200811-200912

main53205-74011i201001-201405

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-74010i200811-201405

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-74010i200811-201405

53210SUPPORT ASSY, RADIATOR

main53210-74010i200811-200912

main53210-74011i201001-201405

53215BSUPPORT, HOOD LOCK

main53215-74010i200811-201405

53245BRACKET, HEADLAMP, RH

main53245-74010i200811-201405

53246BRACKET, HEADLAMP, LH

main53245-74010i200811-201405

53271EBRACKET, HEADLAMP MOUNTING, RH

main53271-74010i200811-201405

53272CBRACKET, HEADLAMP MOUNTING, LH

main53272-74010i200811-201405

53283AREINFORCEMENT, RADIATOR SUPPORT, LOWER

main53283-30010×2i200811-201405

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-74011i200811-201405

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53286-74011i200811-201405

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-74011i200811-201405

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-74011i200811-201405

53294BDEFLECTOR, RADIATOR LOWER AIR, NO.1

main53294-74010i200811-200910

main53295-74010i200905-201405

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-74010i200811-201405

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-74010i200811-201405

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-74010i200811-201405

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-74010i200811-201405

53717APLATE, FENDER APRON

main53717-74010i200811-201405

53717DGUSSET, FENDER APRON, RH

main53743-74010i200811-201405

53718PLATE, FENDER APRON, LH

main53718-74010i200811-201405

53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-74010i200811-201405

53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH

main53738-74010i200811-201405

53743AREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main53815-74010i200811-201405

53744AREINFORCEMENT, FRONT FENDER APRON, FRONT LH

main53816-74010i200811-201405

53813CEXTENSION, FRONT FENDER, RH

main53707-74010i200811-201405

53814CEXTENSION, FRONT FENDER, LH

main53708-74010i200811-201405

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

55101PANEL SUB-ASSY, DASH

main55101-74010i200811-201005

main55101-74011i201005-201405

main55101-74020i200811-201405

main55101-74901i200811-201405

main55101-74902i200811-201405

55137ABRACE, DASH TO FRAME, RH

main55137-74010i200811-201001

main55137-74011i201002-201405

55138ABRACE, DASH TO FRAME, LH

main55138-74010i200811-201405

55168ABRACKET, FRONT FENDER MOUNTING, RH

main55168-74010i200811-201405

55169BBRACKET, FRONT FENDER MOUNTING, LH

main55169-74010i200811-201405

55210INSULATOR ASSY, DASH PANEL

main55210-74010i200811-201005

main55210-74012-B0i201005-201207

GRAY,TRIM1#,4#,5#,7#; GRAY,TRIM1#,4#,5#,7#,9#

main55210-74013-B0i201208-201405

GRAY,TRIM1#,7#; GRAY,TRIM1#,7#,9#

main55210-74020i200811-201005

main55210-74020-B0i201005-201207

GRAY,TRIM1#,4#,5#,7#,9#

main55210-74021-B0i201208-201405

GRAY,TRIM1#,7#; GRAY,TRIM7#,9#

main55210-74030i200811-201004

main55210-74031-B0i201005-201205

GRAY,TRIM1#,4#,5#,7#,9#

main55210-74040i200811-201003

55210ACLIP

main90467-07164×2i200811-201405

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-74011i200811-201006

main55214-74012i201007-201405

main55214-74021i200811-201103

main55214-74022i201103-201405

main55214-74031i200811-201103

main55214-74032i201103-201405

55215APAD, DASH PANEL INSULATOR, NO.3

main55215-74010i200811-201405

main55215-74020i200811-201405

55223AINSULATOR, DASH PANEL, OUTER

main55223-74010i200811-201405

main55223-74020i200811-201405

55226ACLIP

main90467-06188×4i200811-201405

55229PLATE, DASH PANEL INSULATOR, NO.4

main55229-48010×4i200811-201405

55239APLATE, DASH PANEL INSULATOR, NO.3

main55239-48020×4i200811-201405

55787GINSULATOR, COWL TOP PANEL, NO.1

main55787-74010i200811-201405

main55787-74020i200811-201405

5701HOLE PLUG

→ Go to FIG 57-01

57155AREINFORCEMENT, FRONT SIDE MEMBER, NO.3 RH

main57155-74010i200811-201405

57156AREINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57156-74010i200811-201405

57161CROSSMEMBER, FRONT

main57103-74011i200811-201405

9010906328

main90109-06328

9010906380

main90109-06380

9046709227

main90467-09227

9054115038

main90541-15038

9090105005

main90901-05005

9151580818

main91515-80818

9167180816

main91671-80816

91671A0816

main91671-A0816

60 parts on this diagram · 1 diagram in section

FRONT FENDER APRON & DASH PANEL for Toyota IQ

This section contains 60 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota IQ. Key components include: COVER, ENGINE UNDER, RH, COVER, ENGINE UNDER, LH, SUPPORT SUB-ASSY, RADIATOR, LOWER, SUPPORT SUB-ASSY, RADIATOR, RH, SUPPORT SUB-ASSY, RADIATOR, LH.
