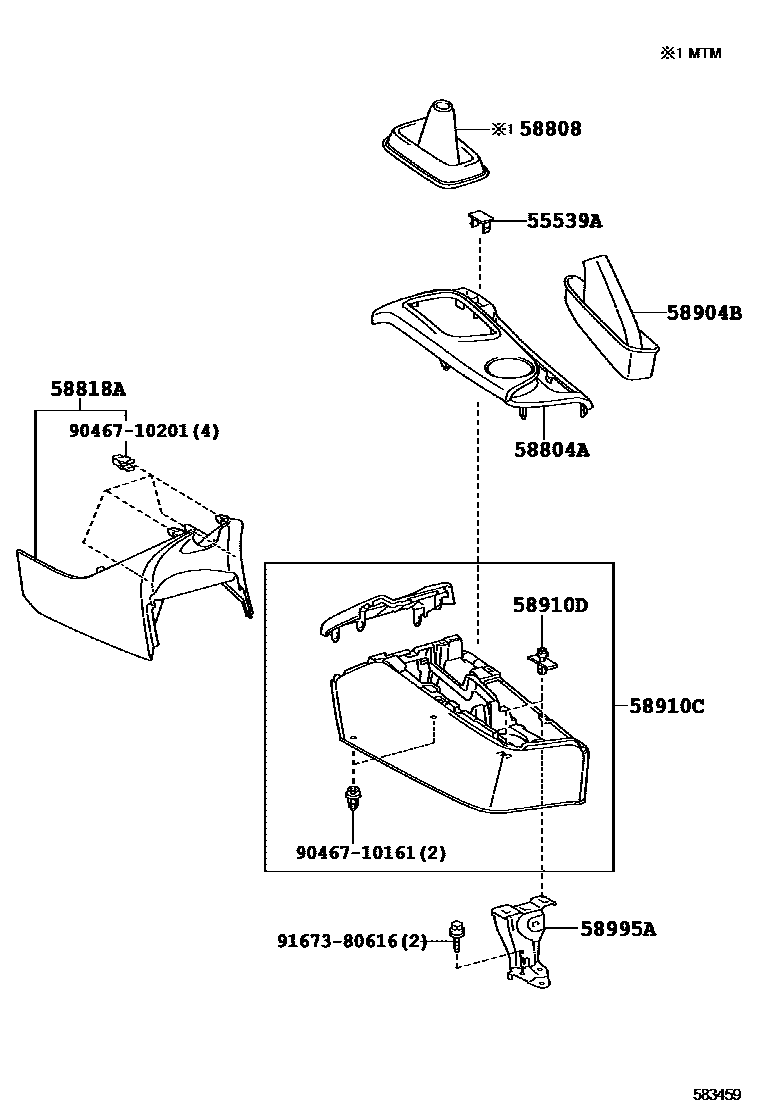

Toyota IQ — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-52060-B0iNUJ10..LHD200811-201205

SEAT HEATER-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#,4#,5#,7#,9#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-74010-C0iNGJ10..R201205-201405

BLACK,TRIM1#,7#,9#

main58804-74020-C0iKGJ10,NGJ10..CVFC200811-201405

BLACK,TRIM1#,4#,5#,7#,9#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-74010-B0iKGJ10,NGJ10,NUJ10..MTM200811-201005

DK.GRAY,TRIM1#,4#,5#,7#

main58808-74010-C0iNGJ10..R201205-201405

BLACK,TRIM1#,7#,9#

58818ACOVER, CONSOLE BOX, FR

main58818-74020-C0iKGJ10..RHD;NGJ10..RHD..N200811-201405

BLACK,TRIM1#,4#,5#,7#,9#

main58818-74030-C0supersedes 58818-74010-C0iNGJ10..LHD..N;KGJ10,NUJ10..LHD200811-201405

COLD AREA SPEC(S RANK),BLACK,TRIM1#,4#,5#,7#,9#

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-74010-B0iKGJ10,NGJ10,NUJ10200811-201005

DK.GRAY,TRIM1#,4#,5#,7#

main58904-74010-C0iNGJ10..N;KGJ10,NUJ10201005-201405

BLACK,TRIM1#,4#,5#,7#,9#

58910CBOX ASSY, CONSOLE, REAR

main58910-74010-C0iNUJ10..RHD200811-201003

BLACK,TRIM1#,4#,5#,7#

58910DCLIP(FOR CONSOLE BOX)

main55345-74010×2iKGJ10,NGJ10,NUJ10200811-201405

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-74010iKGJ10,NGJ10,NUJ10200811-201405

9046710161

main90467-10161

9046710201

main90467-10201

9167380616

main91673-80616

11 parts on this diagram · 1 diagram in section
