Toyota IQ — ACCELERATOR LINK

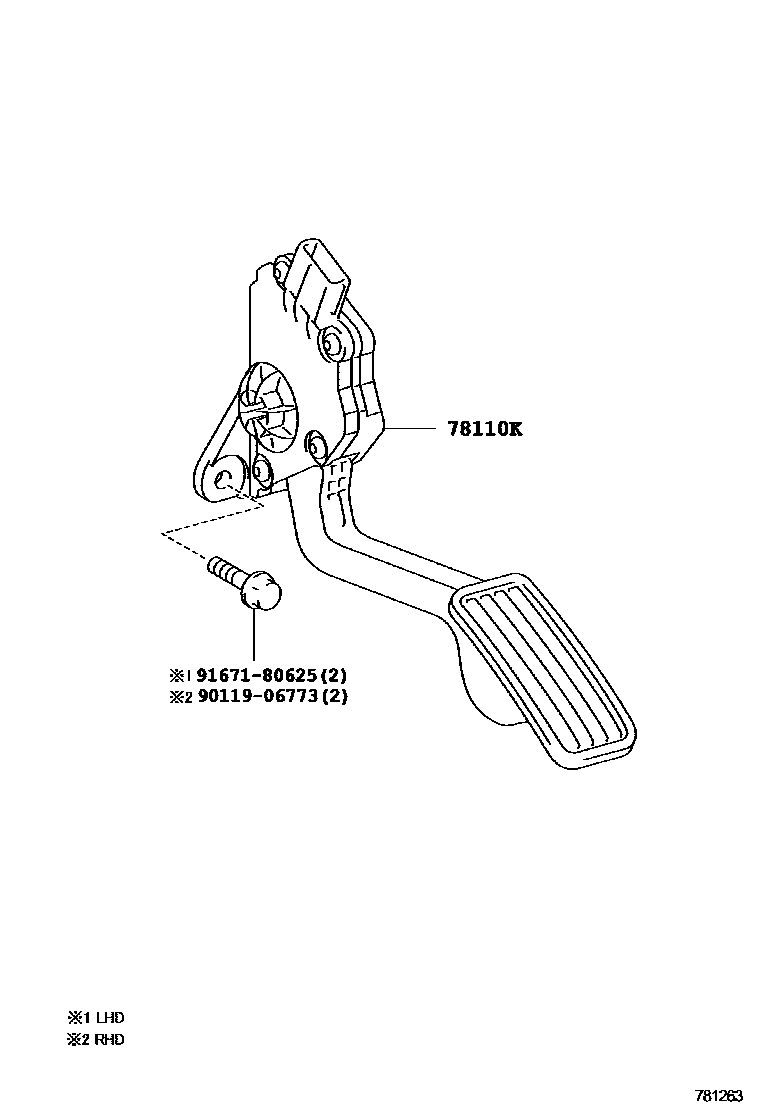

Parts diagram

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-0W020i200811-200906

main78110-0W022i200906-200907

main78110-0W023i200908-201405

main78110-0W030i200811-200906

main78110-0W032i200906-200907

main78110-0W033i200908-201405

main78110-74010i200811-201006

main78110-74011i201007-201011

main78110-74012i201012-201405

main78110-74020i200811-201104

main78110-74021i201105-201405

9011906773

main90119-06773

9167180625

main91671-80625

3 parts on this diagram · 1 diagram in section

ACCELERATOR LINK for Toyota IQ

This section contains 3 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota IQ. Key components include: ROD ASSY, ACCELERATOR PEDAL(W/SENSOR).
