Toyota IQ EV — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-74010×2i201209

MARK +1

main85381-74020×2i201209

MARK +3

main85381-74030×2i201209

MARK -1

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

main85318-74040i201209

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-74010i201209-201212

85319AHOSE, INLET

main85319-74040i201209

85330JAR ASSY, WINDSHIELD WASHER

main85315-74040i201209

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i201209

85332CAP, WINDSHIELD WASHER JAR

main85316-52190i201209

85333FILTER, WINDSHIELD WASHER JAR

main85312-21020i201209

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160i201209

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i201209

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-20200i201209

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122i201209

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85375-10260i201209

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i201209

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-62094i201209

L=680

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i201209

L=1450(*H,L=900)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i201209

L=1450(*H,L=95)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-62058i201209

L=390

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main85389-74010i201209

L=80

85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5

main90099-62063i201209

L=450

85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6

main85389-74010i201209

L=80

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-74020i201209

85387ACLAMP, WASHER, NO.2

main53614-12040i201209-201212

85387BCLAMP, WASHER, NO.3

main53614-74010i201209-201212

85389DSPRING(WASHER HOSE)

main85389-72030i201209

9011906767

main90119-06767

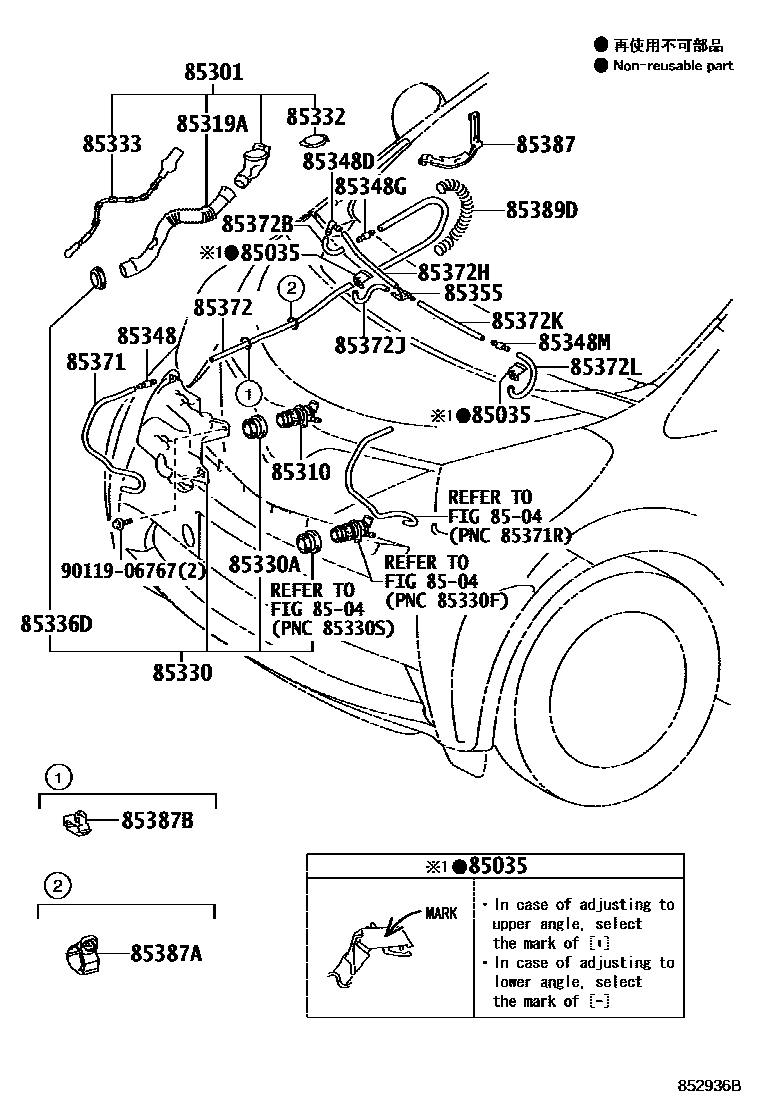

27 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota IQ EV

This section contains 27 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota IQ EV. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, HOSE, INLET.
