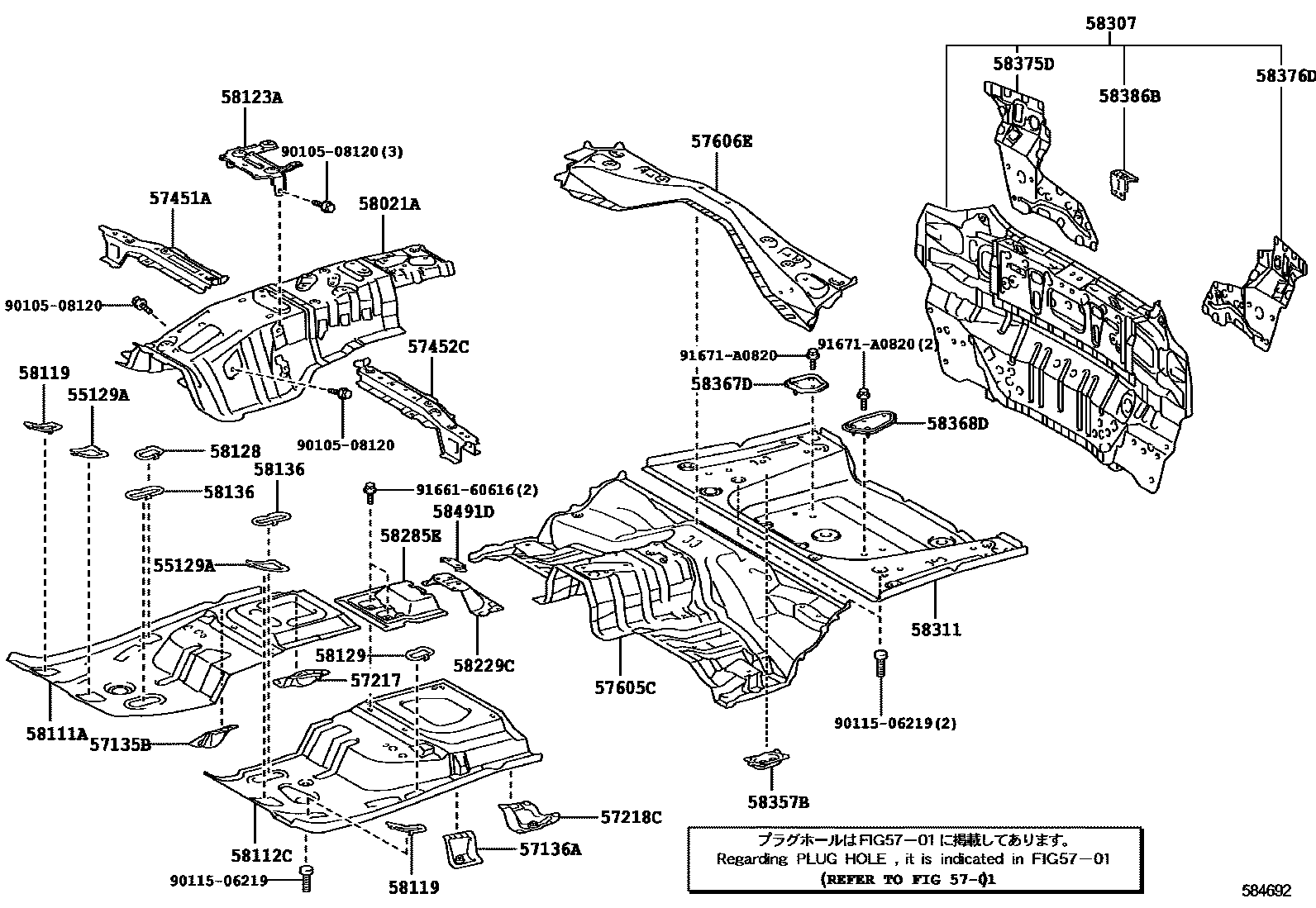

Toyota IQ EV — FLOOR PAN & LOWER BACK PANEL
5701
57135BBRACKET, FRONT FLOOR SIDE, RH
57136ABRACKET, FRONT FLOOR SIDE, LH
57217BRACKET, BODY MOUNTING, NO.4 RH
57218CBRACKET, BODY MOUNTING, NO.4 LH
57451AMEMBER, FRONT FLOOR CROSS, RH
57452CMEMBER, FRONT FLOOR CROSS, LH
57605CMEMBER SUB-ASSY, REAR FLOOR CROSS
57606EMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
58021APANEL SUB-ASSY, HEADER
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58123ASUPPORT, SHIFT & SELECT LEVER
58128PLATE, FRONT FLOOR, NO.1
58129PLATE, FRONT FLOOR, NO.2
58136COVER, FRONT FLOOR HOLE
58229CPANEL, BATTERY SERVICE HOLE
58285ECOVER, CENTER FLOOR HOLE
GRAY,TRIM2#
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58357BBRACKET, ACTUATOR COVER, NO.3 RH
58367DBRACKET, CHARGE TUBE
58368DBRACKET, CHARGE TUBE, NO.2
58375DREINFORCEMENT, BODY LOWER BACK PANEL, RH
58376DREINFORCEMENT, BODY LOWER BACK, LH
58386BBRACKET, REAR BUMPER COVER, NO.2
58491DPLATE, BATTERY SERVICE COVER
9010508120
main90105-08120
9011506219
main90115-06219
9166160616
main91661-60616
91671A0820
main91671-A0820
33 parts on this diagram · 1 diagram in section
