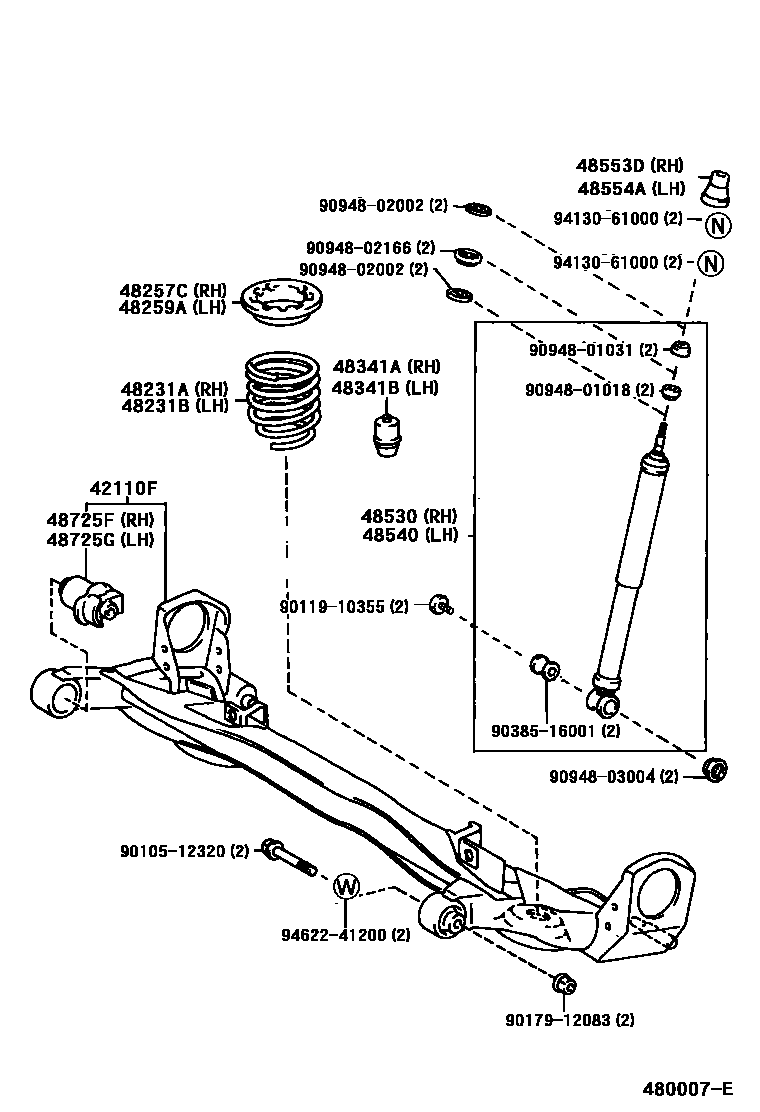

Toyota IPSUM — REAR SPRING & SHOCK ABSORBER

42110FBEAM ASSY, REAR AXLE

main42110-44010iCXM10,SXM10199605

sub42110-44011

sub42423-28020

main42110-44030iSXM15199605

48231ASPRING, COIL, REAR RH

main48231-44010iCXM10,SXM10199605

sub48231-44011

main48231-44020iSXM15199605

sub48231-44021

48231BSPRING, COIL, REAR LH

main48231-44010iCXM10,SXM10199605

sub48231-44011

main48231-44020iSXM15199605

sub48231-44021

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-44010iCXM10,SXM1#199605

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-44010iCXM10,SXM1#199605

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-44010iCXM10,SXM10199605

main48341-44020iSXM15199605

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-44010iCXM10,SXM10199605

main48341-44020iSXM15199605

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-49105iCXM10,SXM10199605

main48531-49115iSXM15199605

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-49105iCXM10,SXM10199605

main48531-49115iSXM15199605

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-44010iCXM10,SXM1#199605

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-44010iCXM10,SXM1#199605

48725FBUSH, REAR AXLE CARRIER, RH

main48725-44010iSXM1#199605-199708

48725GBUSH, REAR AXLE CARRIER, LH

main48725-44010iSXM1#199605-199708

9010512320

main90105-12320

9011910355

main90119-10355

9017912083

main90179-12083

9038516001

main90385-16001

9094801018

main90948-01018

9094801031

main90948-01031

9094802002

main90948-02002

9094802166

main90948-02166

9094803004

main90948-03004

9413061000

main94130-61000

9462241200

main94622-41200

24 parts on this diagram · 1 diagram in section
