Toyota IPSUM — REAR DOOR WINDOW REGULATOR & HINGE

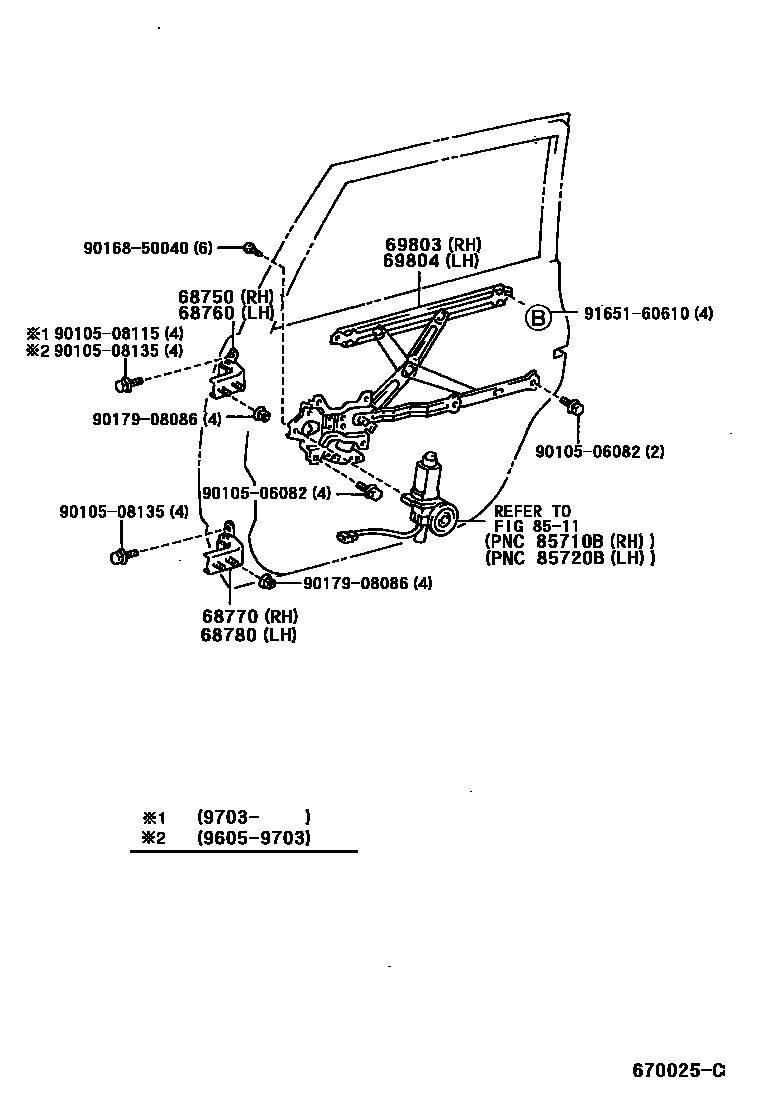

Parts diagram

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-44010i199605

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-44010i199605

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-44010i199605

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-44010i199605

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-44010i199605

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-44010i199605

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9010506082

main90105-06082

9010508115

main90105-08115

9010508135

main90105-08135

9016850040

main90168-50040

9017908086

main90179-08086

9165160610

main91651-60610

13 parts on this diagram · 1 diagram in section

REAR DOOR WINDOW REGULATOR & HINGE for Toyota IPSUM

This section contains 13 genuine Toyota parts for the REAR DOOR WINDOW REGULATOR & HINGE system of the Toyota IPSUM. Key components include: HINGE ASSY, REAR DOOR, UPPER RH, HINGE ASSY, REAR DOOR, UPPER LH, HINGE ASSY, REAR DOOR, LOWER RH, HINGE ASSY, REAR DOOR, LOWER LH, REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH.
