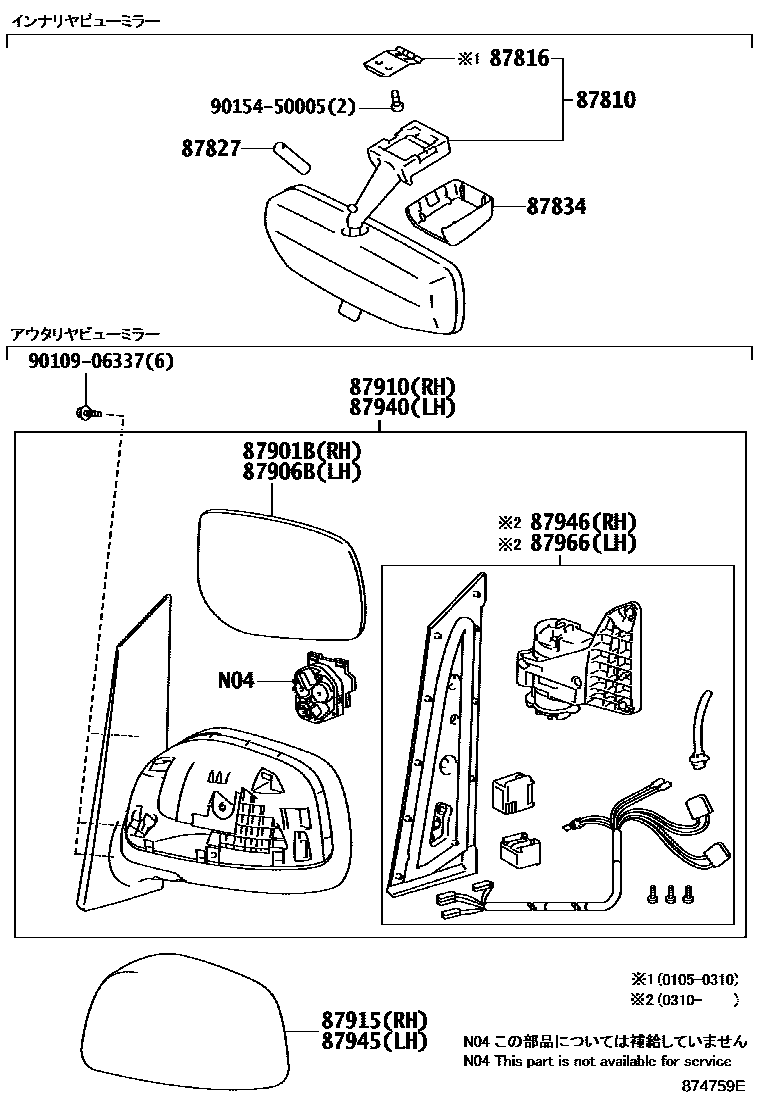

Toyota IPSUM — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
DK.GRAY,TRIM1#
BLACK,TRIM1#
ORCHID BROWN,TRIM0#
SANDAL WOOD,TRIM0#
87816SPRING, INNER REAR VIEW MIRROR
87827ABSORBER, INNER REAR VIEW MIRROR
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
IVORY,TRIM0#
LT.GRAY,TRIM1#
LIGHT GRAY,TRIM1#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
87915COVER, OUTER MIRROR, RH
SUPER WHITE 2,040
WHITE PM.,042
SILVER ME.,1C0
DARK GRAY M. M.,1E2
RED MC.,3M8
LT. ROSE M. M.,3Q1
CHAMPAGNE M.M.,587
AQUA ME.,771
DK. BLUE M. M.,8P4
SUPER WHITE 2,040
WHITE PM.,042
SILVER ME.,1D4
BLACK,202
DK. RED M.M.,3Q3
SUPER RED 5,3P0
BRONZE M.M.,4S2
YELLOW M.M.,580
BLUE MC.,8M6
LT.PURPLISH BLUE M.M.,8K2
87940MIRROR ASSY, OUTER REAR VIEW, LH
87945COVER, OUTER MIRROR, LH
SUPER WHITE 2,040
WHITE PM.,042
SILVER ME.,1C0
DARK GRAY M. M.,1E2
RED MC.,3M8
LT. ROSE M. M.,3Q1
CHAMPAGNE M. M.,587
AQUA ME.,771
DK. BLUE M. M.,8P4
SUPER WHITE 2,040
WHITE PM.,042
SILVER ME.,1D4
BLACK,202
DK. RED M.M.,3Q3
SUPER RED 5,3P0
BRONZE M.M.,4S2
YELLOW M.M.,580
BLUE MC.,8M6
LT.PURPLISH BLUE M.M.,8K2
87946RETRACTOR, OUTER MIRROR, RH
87966RETRACTOR, OUTER MIRROR, LH
9010906337
main90109-06337
9015450005
main90154-50005
14 parts on this diagram · 1 diagram in section
