Toyota IPSUM — HORN

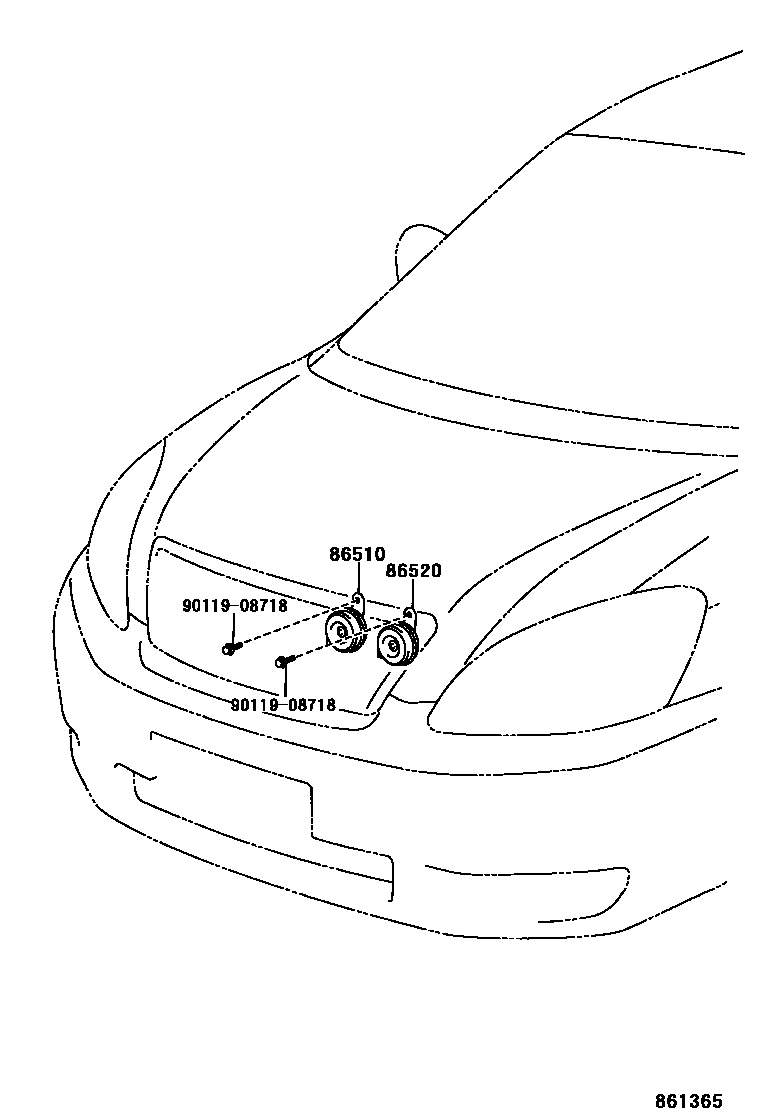

Parts diagram

86510HORN ASSY, HIGH PITCHED

main86510-20280i200105-200310

main86510-33130i200105-200310

main86510-68010i200310-200706

86520HORN ASSY, LOW PITCHED

main86520-20300i200105-200310

main86520-33070i200105-200310

main86520-68010i200310-200706

9011908718

main90119-08718

3 parts on this diagram · 1 diagram in section
