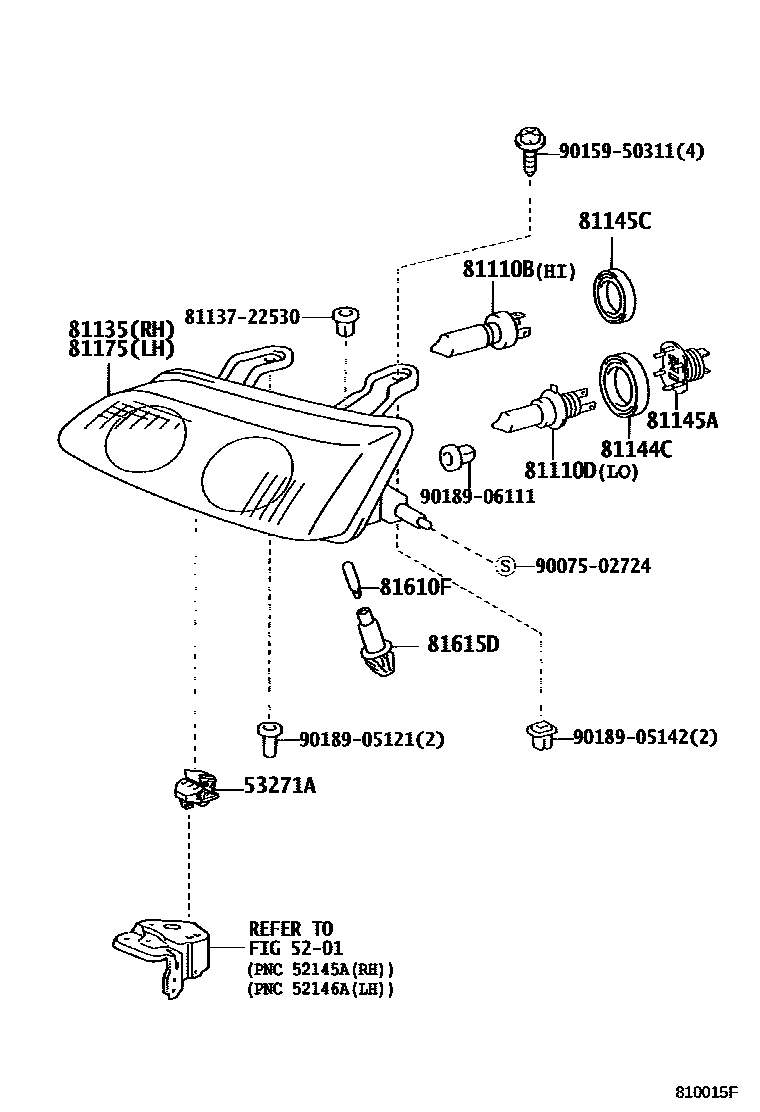

Toyota IPSUM — HEADLAMP

0001 1 0002 1

5201

53271ABRACKET, HEADLAMP MOUNTING

main53271-44010×2iCXM10,SXM1#199605

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81041×2iCXM10,SXM1#199605-199804

main90981-13046×2iCXM10,SXM1#199804

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13047×2iCXM10,SXM1#199804

main90981-13059×2iCXM10,SXM1#199605-199804

sub90981-13063

81135UNIT ASSY, HEADLAMP, RH

main81130-44010iSXM1#199605-199611

main81130-44011iSXM1#199611-199708

main81130-44050iCXM10,SXM1#199708-199804

main81130-44090iCXM10,SXM1#199804

81144CCOVER, HEADLAMP SOCKET

main90075-65002×2iCXM10,SXM1#199605-199804

81145AADAPTER ASSY

main90075-99117×2iCXM10,SXM1#199605-199804

81145CCOVER, HEADLAMP SOCKET, NO.2

main90075-65006×2iCXM10,SXM1#199605-199804

81175UNIT ASSY, HEADLAMP, LH

main81170-44010iSXM1#199605-199611

main81170-44011iSXM1#199611-199708

main81170-44050iCXM10,SXM1#199708-199804

main81170-44090iCXM10,SXM1#199804

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iCXM10,SXM1#199605

81615DSOCKET, CLEARANCE LAMP

main90075-60007×2iCXM10,SXM1#199605-199804

main90075-60020×2iCXM10,SXM1#199804

8113722530PROTECTOR, HEADLAMP, NO.2 RH

main81137-22530

9007502724

main90075-02724

9015950311

main90159-50311

9018905121

main90189-05121

9018905142

main90189-05142

9018906111

main90189-06111

17 parts on this diagram · 2 diagrams in section
