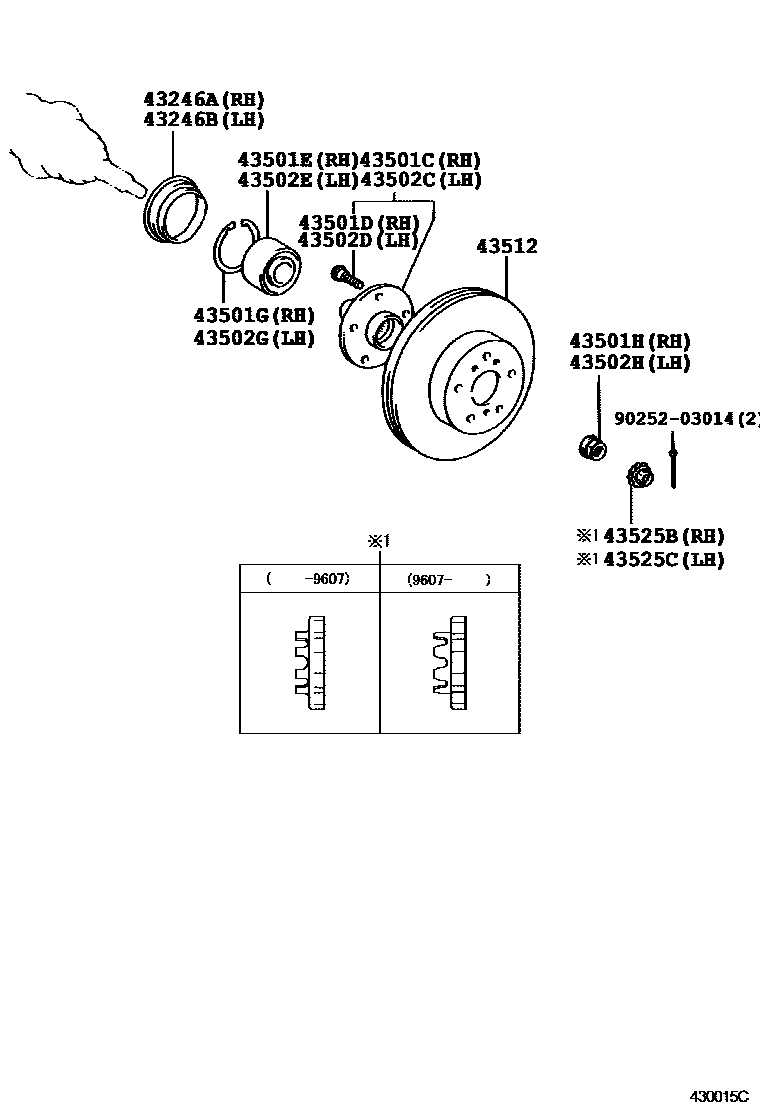

Toyota IPSUM — FRONT AXLE HUB

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-32020iCXM10,SXM1#199605

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-32020iCXM10,SXM1#199605

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-44010iCXM10,SXM1#199605

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02070×5iCXM10,SXM1#199605

sub90942-02049

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-43009iCXM10,SXM1#199605

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-88001iCXM10,SXM1#199605

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90178-22001iCXM10,SXM1#199709

main90179-22020iSXM1#199605-199709

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-44010iCXM10,SXM1#199605

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02070×5iCXM10,SXM1#199605

sub90942-02049

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-43009iCXM10,SXM1#199605

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-88001iCXM10,SXM1#199605

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90178-22001iCXM10,SXM1#199709

main90179-22020iSXM1#199605-199709

43512DISC, FRONT

main43512-33020×2iCXM10,SXM1#199605

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main42428-42010iCXM10,SXM1#199607

main43525-20030iSXM1#199605-199607

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main42428-42010iCXM10,SXM1#199607

main43525-20030iSXM1#199605-199607

9025203014

main90252-03014

16 parts on this diagram · 1 diagram in section
