Toyota IPSUM — FOG LAMP

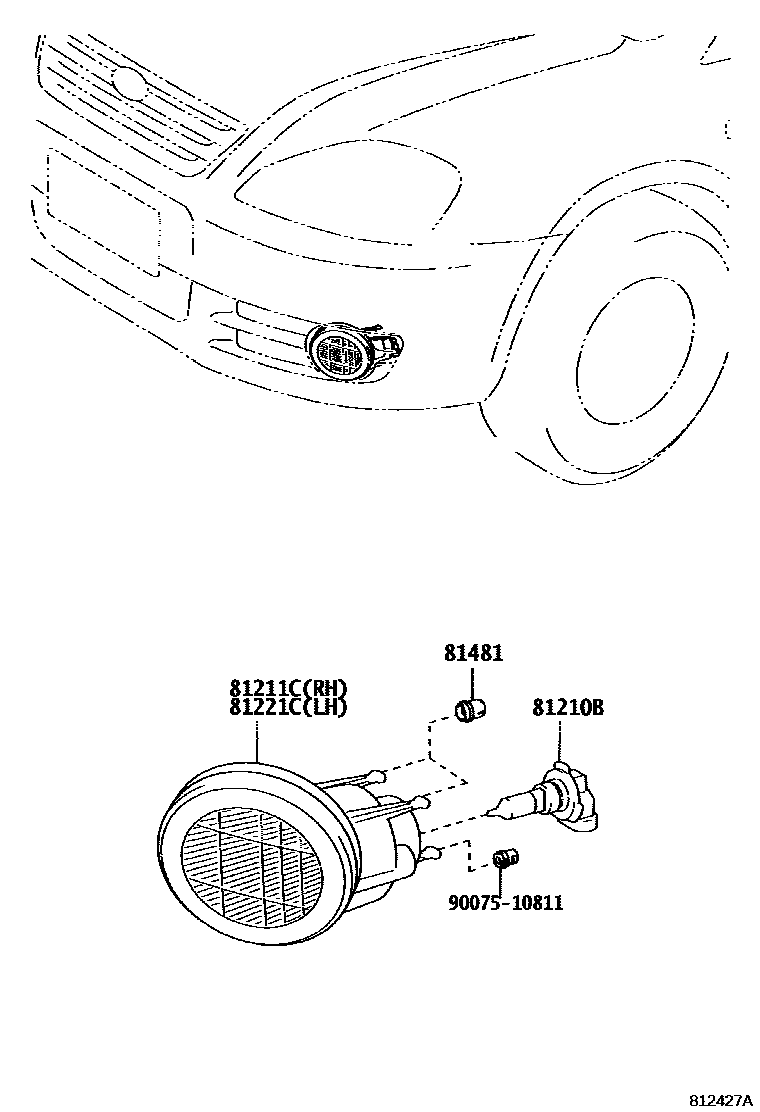

Parts diagram

81210BBULB, FOG LAMP

main90981-13047200105-200706

main90981-13060200105-200310

81211CLAMP UNIT, FOG LAMP, RH

main81211-26060200105-200310

main81211-28210200310-200706

main81211-42050200310-200706

main81211-44060200105-200310

81221CLAMP UNIT, FOG LAMP, LH

main81221-26060200105-200310

main81221-28110200310-200706

main81221-42050200310-200706

main81221-44060200105-200310

81481BRACKET, FOG LAMP

main81481-10030200105-200310

9007510811

main90075-10811

5 parts on this diagram · 4 diagrams in section

FOG LAMP for Toyota IPSUM

This section contains 19 genuine Toyota parts for the FOG LAMP system of the Toyota IPSUM. Key components include: FRONT BUMPER & BUMPER STAY, LAMP ASSY, FOG, RH, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, CORD, FOG LAMP.
