Toyota IPSUM — FOG LAMP

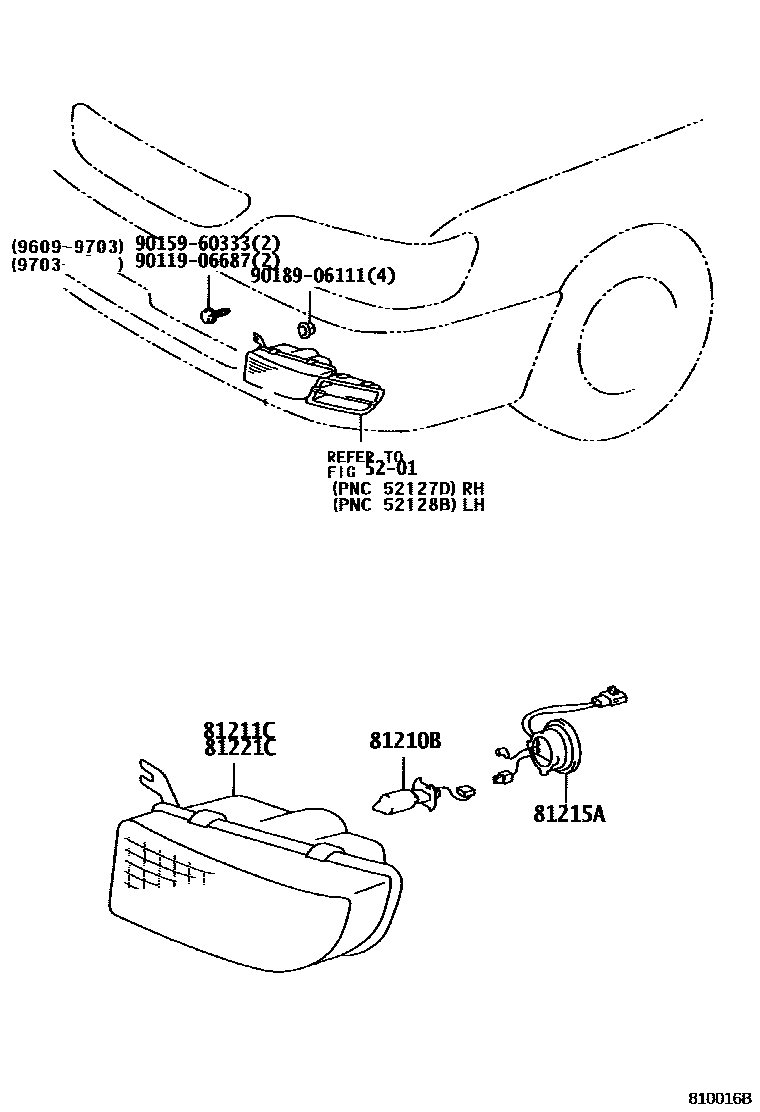

Parts diagram

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81210BBULB, FOG LAMP

main90981-13048i199605-199804

main90981-13071i199804

81211CLAMP UNIT, FOG LAMP, RH

main81211-44010i199605-199804

main81211-44040i199804

81215ASOCKET & WIRE, FOG LAMP

main81215-44010i199605-199804

main81215-44040i199804

81221CLAMP UNIT, FOG LAMP, LH

main81221-44010i199605-199804

main81221-44040i199804

9011906687

main90119-06687

9015960333

main90159-60333

9018906111

main90189-06111

8 parts on this diagram · 1 diagram in section

FOG LAMP for Toyota IPSUM

This section contains 8 genuine Toyota parts for the FOG LAMP system of the Toyota IPSUM. Key components include: FRONT BUMPER & BUMPER STAY, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, SOCKET & WIRE, FOG LAMP, LAMP UNIT, FOG LAMP, LH.
