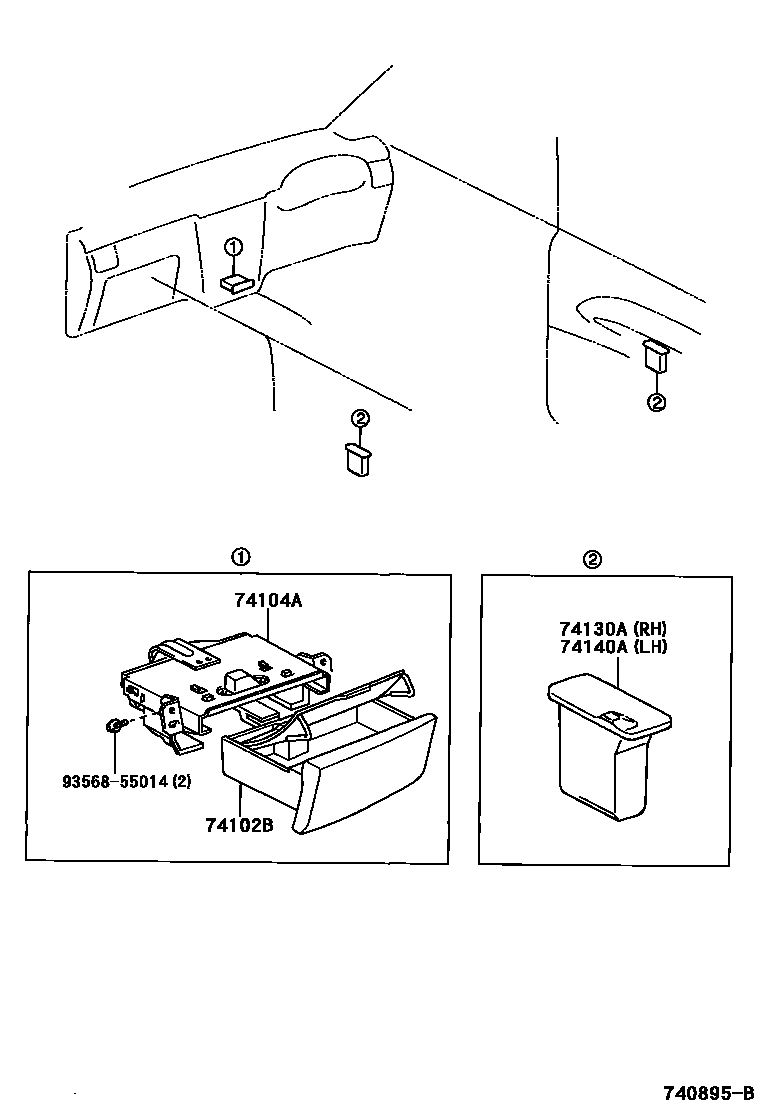

Toyota IPSUM — ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-44030-A0iACM2#..240I,240U200310-200912

IVORY,TRIM0#

main74102-44030-B0iACM2#200105-200310

MD.GRAY,TRIM1#

main74102-44030-B1iACM2#..240S200310-200912

DK.GRAY,TRIM1#

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-44040iACM2#200105-200310

74130ARECEPTACLE ASSY, REAR ASH, RH

main74130-44070-A0iACM2#..240E,240I,240U200105-200310

IVORY,TRIM0#

main74130-44070-B0iACM2#..240E,240I,240U200105-200310

MD.GRAY,TRIM1#

main74130-44070-C0iACM2#..240S200105-200310

BLACK,TRIM1#

74140ARECEPTACLE ASSY, REAR ASH, LH

main74140-44020-A0iACM2#..240E,240I,240U200105-200310

IVORY,TRIM0#

main74140-44020-B0iACM2#..240E,240I,240U200105-200310

MD.GRAY,TRIM1#

main74140-44020-C0iACM2#..240I200201-200206

9356855014

main93568-55014

5 parts on this diagram · 1 diagram in section
