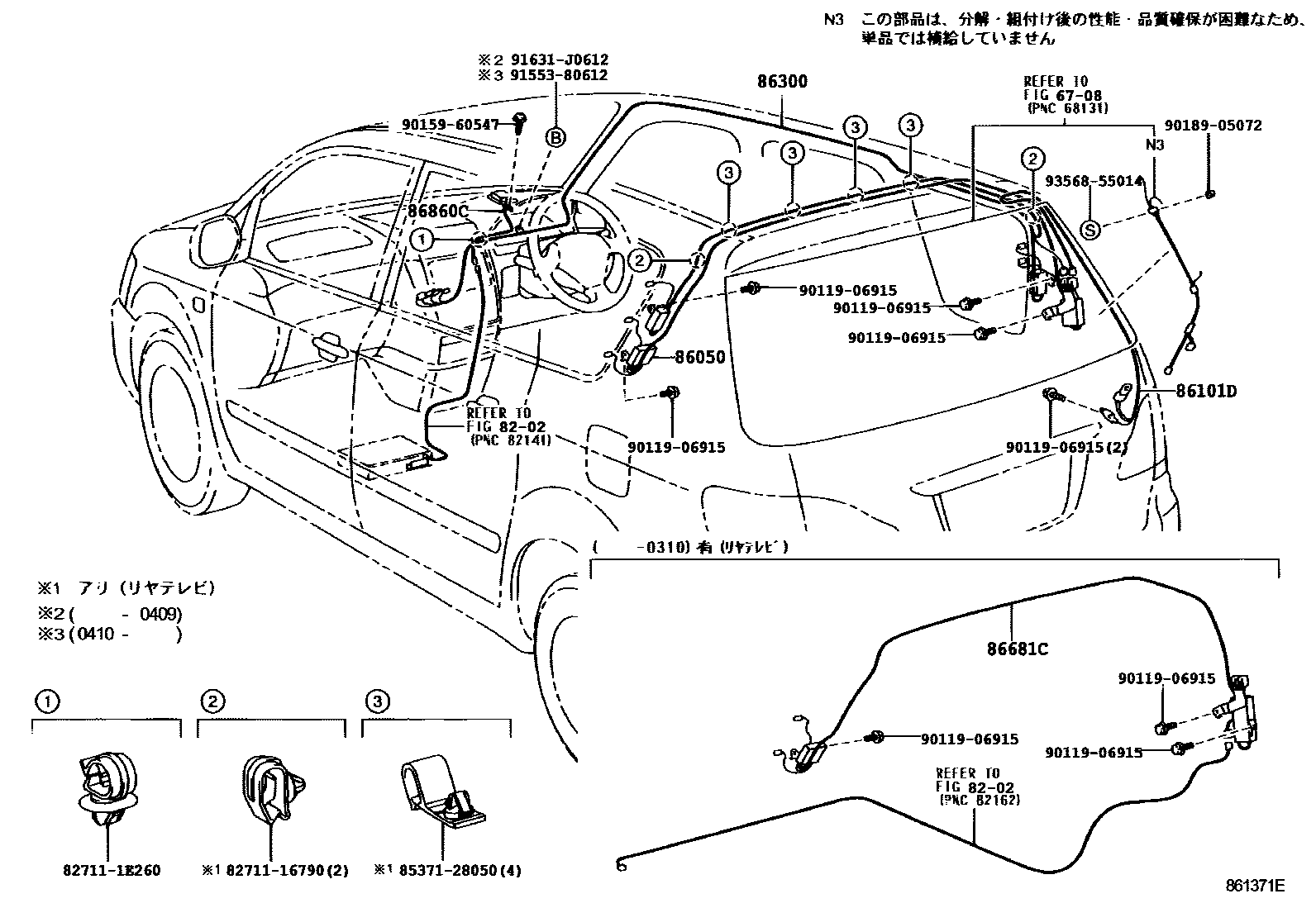

Toyota IPSUM — ANTENNA

6708

8202

86050ANTENNA ASSY, TELEVISION

main86050-44060iACM2#..06S200310-200706

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-44190iACM2#200105-200310

86300ANTENNA ASSY, W/HOLDER

main86300-44090iACM2#..06S200310-200706

main86300-44100iACM2#..240I,240S,240U200105-200310

main86300-44110iACM2#200105-200310

86681CDIVIDER, ANTENNA

main86681-44010iACM2#200105-200310

86860CANTENNA ASSY, NAVIGATION

main86860-44030iACM2#200105-200310

main86860-44060iACM2#..06S200310-200706

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E260

8537128050HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-28050

9011906915

main90119-06915

9015960547

main90159-60547

9018905072

main90189-05072

9155380612

main91553-80612

91631J0612

main91631-J0612

9356855014

main93568-55014

16 parts on this diagram · 1 diagram in section
