Toyota IPSUM — AIR BAG

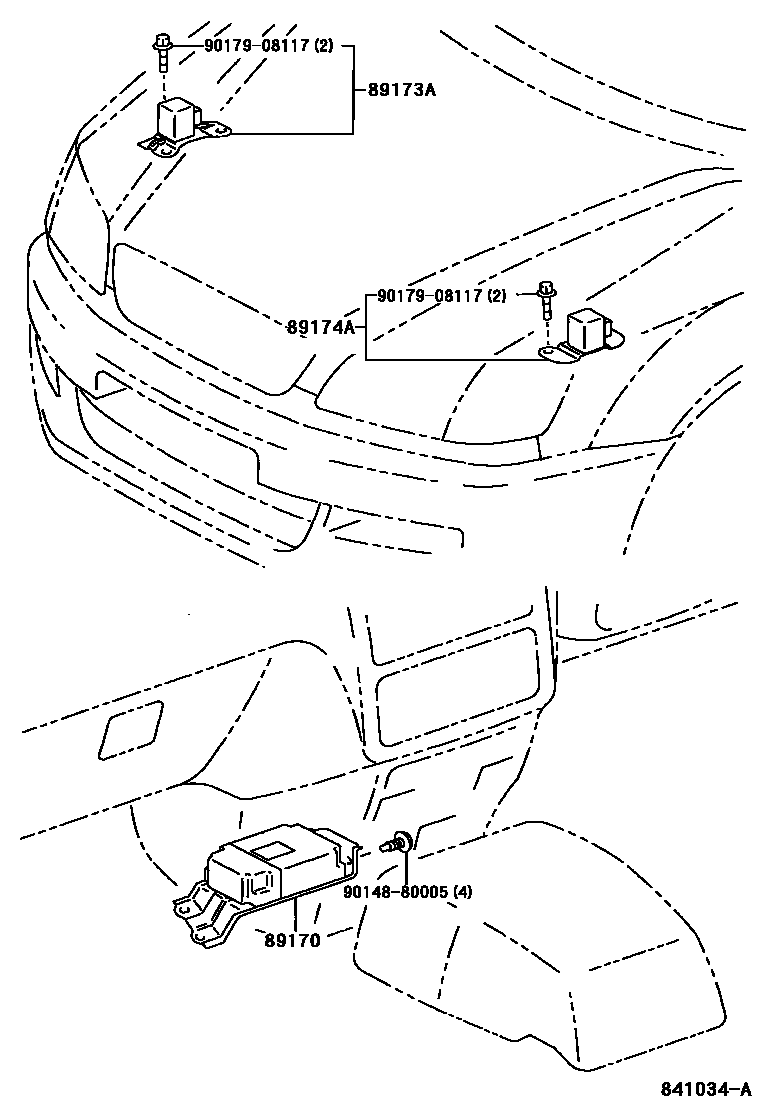

Parts diagram

89170SENSOR ASSY, AIRBAG

main89170-44010i199605-199708

main89170-44020i199708-199804

main89170-44021i199804-199808

main89170-44030i199808

89173ASENSOR, AIRBAG, FRONT RH

main89173-49115i199708-199808

main89173-49215i199808-199906

main89173-49235i199906

89174ASENSOR, AIRBAG, FRONT LH

main89173-49125i199708-199906

main89173-49225i199906

9014880005

main90148-80005

9017908117

main90179-08117

5 parts on this diagram · 1 diagram in section

AIR BAG for Toyota IPSUM

This section contains 5 genuine Toyota parts for the AIR BAG system of the Toyota IPSUM. Key components include: SENSOR ASSY, AIRBAG, SENSOR, AIRBAG, FRONT RH, SENSOR, AIRBAG, FRONT LH.
