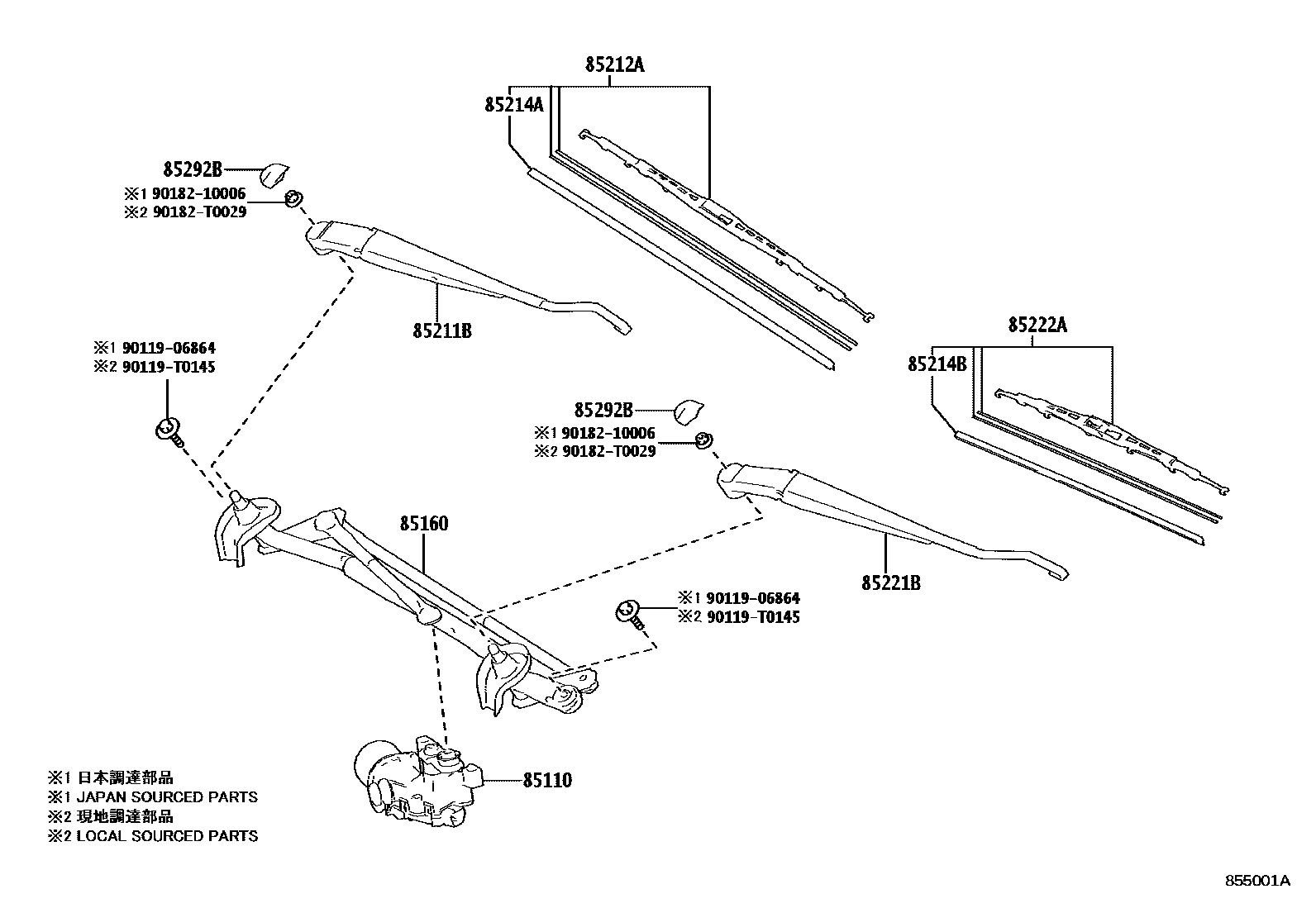

Toyota INNOVA — WINDSHIELD WIPER
85110MOTOR ASSY, WINDSHIELD WIPER
85160LINK ASSY, WINDSHIELD WIPER
85211BARM, FRONT WIPER, RH
85212ABLADE, FR WIPER, RH
85214ARUBBER, WIPER, RH
85214BRUBBER, WIPER, LH
85221BARM, FRONT WIPER, LH
85222ABLADE, FR WIPER, LH
85292BCAP, FRONT WIPER ARM HEAD
9011906864
main90119-06864
90119T0145
main90119-T0145
9018210006
main90182-10006
90182T0029
main90182-T0029
13 parts on this diagram · 2 diagrams in section
WINDSHIELD WIPER for Toyota INNOVA
This section contains 13 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota INNOVA. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH, RUBBER, WIPER, RH.
