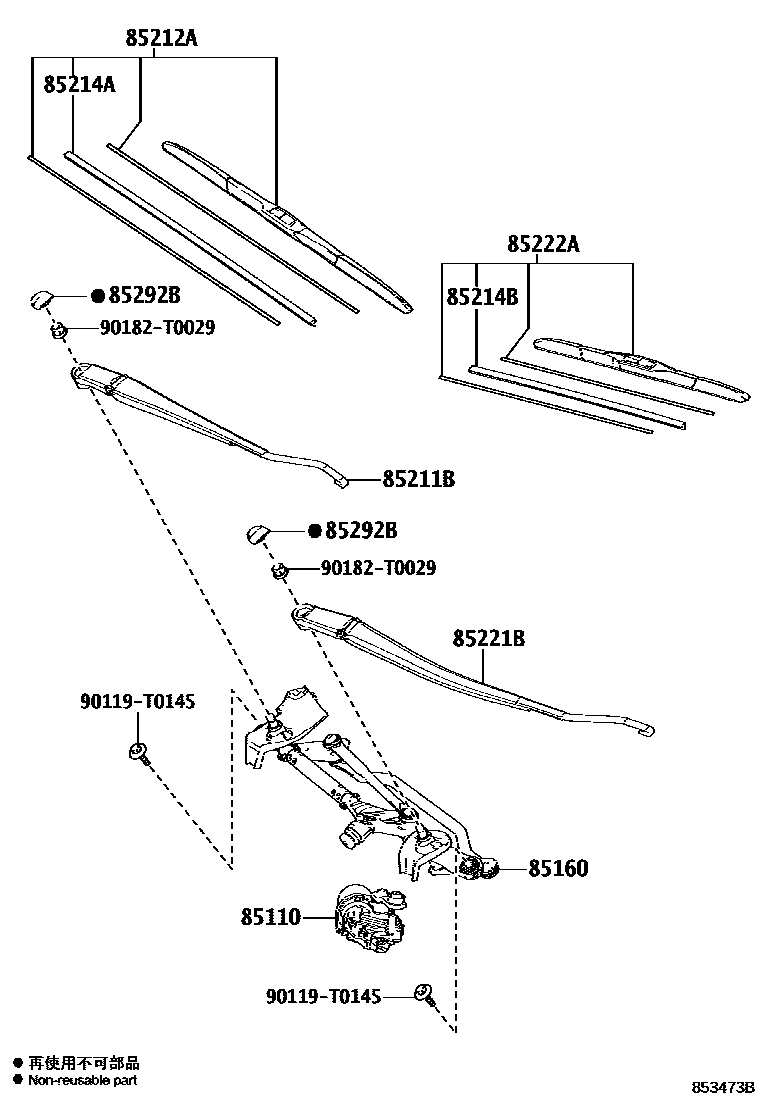

Toyota INNOVA — WINDSHIELD WIPER
85110MOTOR ASSY, WINDSHIELD WIPER
85160LINK ASSY, WINDSHIELD WIPER
main85150-0K120iGUN143,TGN141..6FC..(GCC,LA);TGN14#..5F..(20E,27)..(LA,VN);GUN14#,TGN140..IDNP..(20E,20G,24V,28E,28G,28V,N)..(GEN,PHL)201511-202008
85211BARM, FRONT WIPER, RH
85212ABLADE, FR WIPER, RH
main85212-71040iTGN140..20E..VN;TGN140..IDNP..PHL;TGN140..(PHLP,VNP)..(20V,N);TGN140..PHLP..6FC..(20,20E);GUN143,TGN141..(27V,28,28E,28V,N)..(PHL,VN)202009
85214ARUBBER, WIPER, RH
main85214-28090iGUN143,TGN141..6FC..(GCC,LA);TGN14#..5F..(20E,27)..(LA,VN);GUN14#,TGN140..IDNP..(20E,20G,24V,28E,28G,28V,N)..(GEN,PHL)201511-202008
85214BRUBBER, WIPER, LH
85221BARM, FRONT WIPER, LH
85222ABLADE, FR WIPER, LH
85292BCAP, FRONT WIPER ARM HEAD
90119T0145
main90119-T0145
90182T0029
main90182-T0029
11 parts on this diagram · 2 diagrams in section
WINDSHIELD WIPER for Toyota INNOVA
This section contains 11 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota INNOVA. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH, RUBBER, WIPER, RH.
