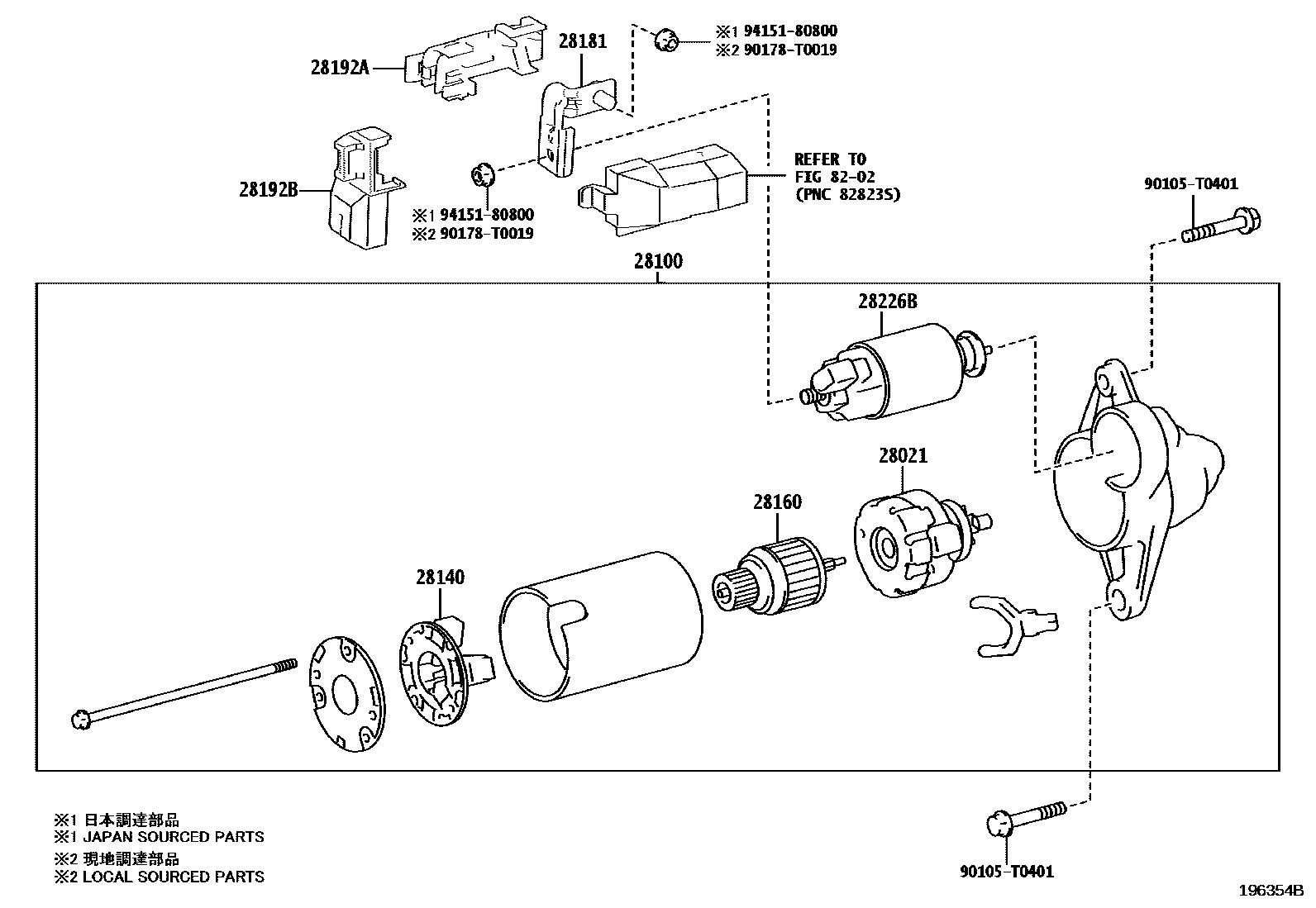

Toyota INNOVA — STARTER

0001 112V 1.0KW 0002 112V C60L

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-F2130iM20AFKS..MAGA10..IND202212

main28021-F2140iM20AFKS..MAGA10..IDNP202211

28100STARTER ASSY

main28100-F2130iM20AFKS..MAGA10..IND202212

12V C60L

main28100-F2140iM20AFKS..MAGA10..IDNP202211

12V 1.0KW

28140HOLDER ASSY, STARTER BRUSH

main28140-0Y300iM20AFKS..MAGA10..IDNP202211

main28140-F2130iM20AFKS..MAGA10..IND202212

28160ARMATURE ASSY, STARTER

main28160-F2130iM20AFKS..MAGA10..IND202212

main28160-F2140iM20AFKS..MAGA10..IDNP202211

28181TERMINAL, STARTER

main28181-24010iM20AFKS..MAGA10..IDNP202211

main28181-V5010iM20AFKS..MAGA10..IND202212

28192ACOVER, STARTER, NO.1

main28192-VT010iM20AFKS..MAGA10..IND202212

main28192-VT040iM20AFKS..MAGA10..IDNP202211

28192BCOVER, STARTER, NO.2

main28192-VT020iM20AFKS..MAGA10..IND202212

main28192-VT050iM20AFKS..MAGA10..IDNP202211

28226BSTARTER KIT, REPAIR SERVICE

main28226-F2140iM20AFKS..MAGA10..IDNP202211

8202

90105T0401

main90105-T0401

90178T0019

main90178-T0019

9415180800

main94151-80800

12 parts on this diagram · 2 diagrams in section
