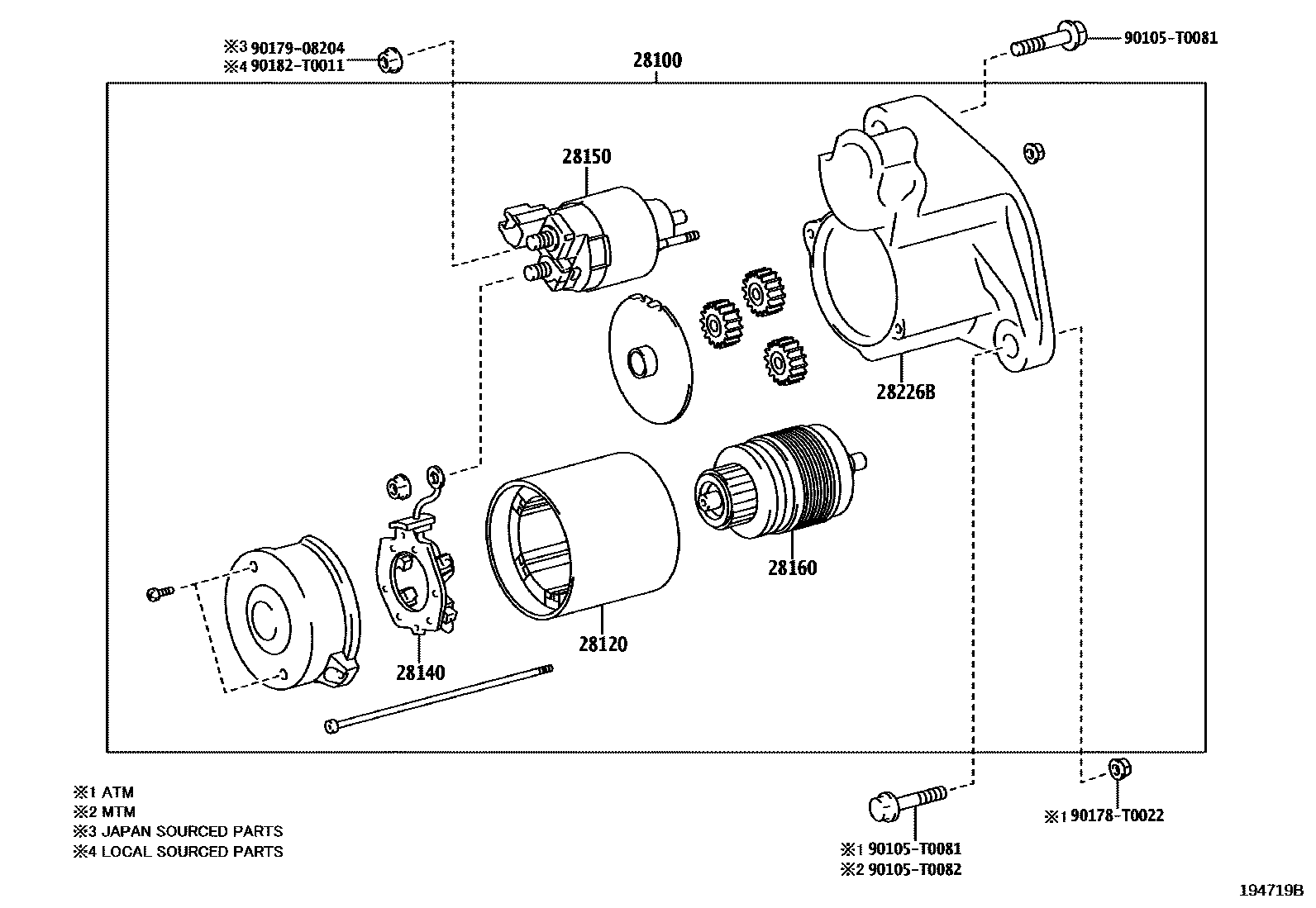

Toyota INNOVA — STARTER

0001 112V 2.0KW 0002 112V 2.4KW 0003 112V 1.3KW,1.6KW

28100STARTER ASSY

main28100-0C080i1TRFE..TGN140201511-201802

12V 1.3KW

main28100-0C090i1TRFE..TGN140..PHLP..N;1TRFE..TGN140..PHLP..6FC..20E201803-202102

12V 1.6KW

main28100-0L180i1GDFTV..GUN143..5F..(GCC,GEN)201511-201904

12V 2.0KW

main28100-0L190i2GDFTV..GUN142..6FC..IND202011-202301

12V 2.0KW

main28100-30110i2GDFTV..GUN142..TH201511-201707

12V 2.4KW

28120YOKE ASSY, STARTER

main28120-0C080i1TRFE..TGN140201511-201803

main28120-0C090i1TRFE..TGN140..PHLP..N;1TRFE..TGN140..PHLP..6FC..20E201803-202102

main28120-0L180i2GDFTV..GUN142..5F..24V..IDN;2GDFTV..GUN142..5F..(24G,24Z,G);2GDFTV..GUN142..6FC..(IDN,MA,TH);1GDFTV..GUN143..(28,28E,28V,N)..PHL202009

28140HOLDER ASSY, STARTER BRUSH

main28140-0C080i1TRFE,2TRFE..TGN14#..GCC,GEN,LA,TH202009-202304

main28140-0L180i2GDFTV..GUN142..GCC,SA201511-201807

28150SWITCH ASSY, MAGNET STARTER

main28150-0C080i1TRFE..TGN140..PHLP..20G;1TRFE..TGN140..PHLP..5F..20E201511

main28150-0L180i1GDFTV..GUN143..PHL,TH;2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..GCC201511-201909

main28150-0Y170i1GDFTV,2GDFTV..GUN14#..IDNP201909-202008

main28150-40130i1TRFE,2TRFE..TGN14#..IDN,MA,VN202207

(J)

28160ARMATURE ASSY, STARTER

main28160-0C090i1TRFE..TGN140..5F..MA201803-201905

main28160-0L180i2GDFTV..GUN142..GEN,IDN;1GDFTV..GUN143..6FC..GCC;1GDFTV..GUN143..IDNP..(PHL,TH)201511-202008

main28160-31090i1TRFE..TGN140201703-201803

main28160-37060i1TRFE..TGN140201511-201703

28226BSTARTER KIT, REPAIR SERVICE

main28226-0C080i1TRFE..TGN140201511-201803

main28226-0C090i1TRFE..TGN140..5F..MA201803-201905

main28226-0L180i2GDFTV..GUN142..6FC..IND202009-202301

90105T0081

main90105-T0081

90105T0082

main90105-T0082

90178T0022

main90178-T0022

9017908204

main90179-08204

90182T0011

main90182-T0011

11 parts on this diagram · 3 diagrams in section
