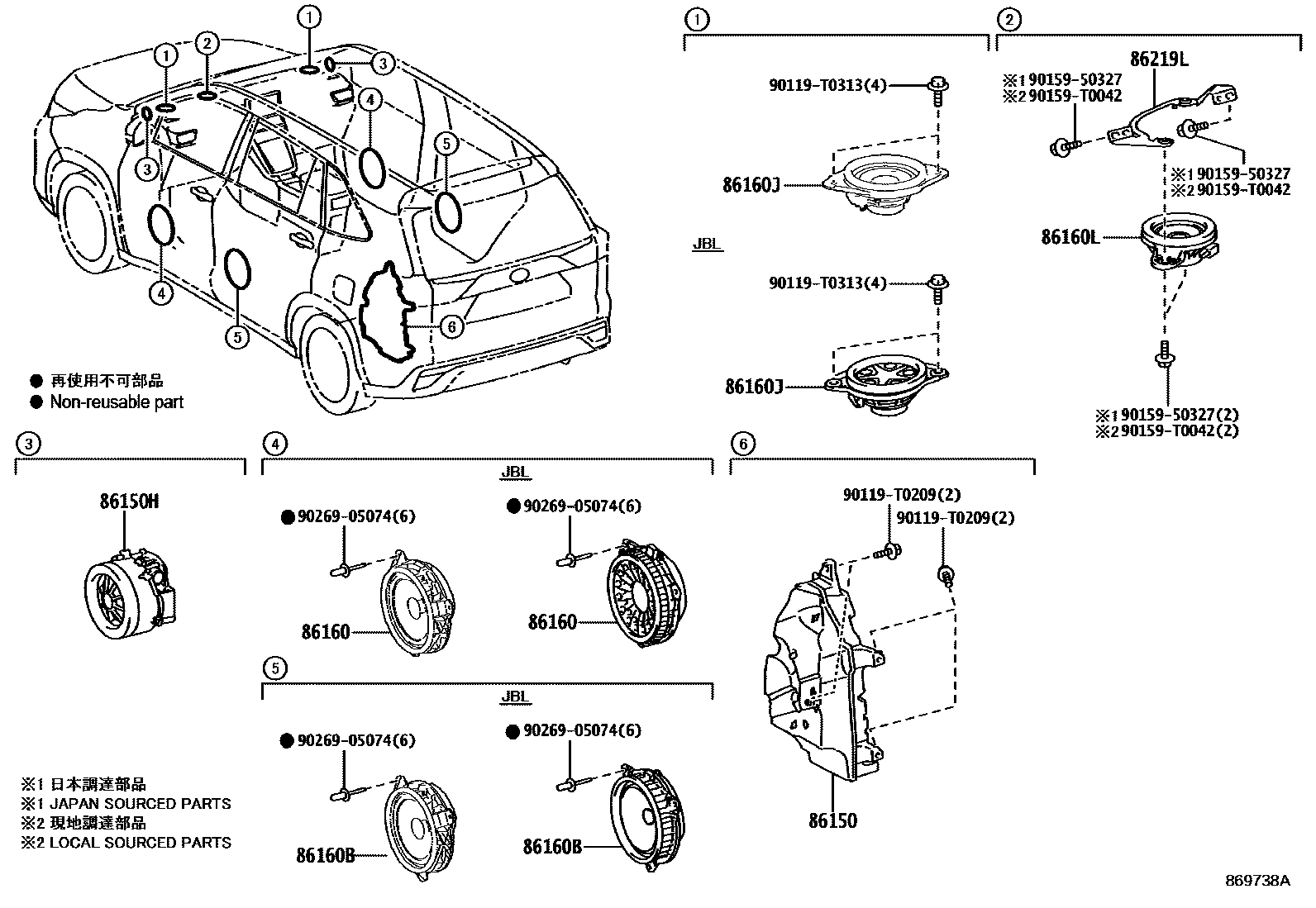

Toyota INNOVA — SPEAKER
86150SPEAKER ASSY, W/BOX, NO.1
86150HSPEAKER ASSY, W/BRACKET
86160SPEAKER ASSY, FRONT NO.1
86160BSPEAKER ASSY, REAR
86160JSPEAKER ASSY, FRONT NO.3
86160LSPEAKER ASSY, FRONT NO.4
UAE SPEC
86219LBRACKET, SPEAKER
UAE SPEC
90119T0209
main90119-T0209
90119T0313
main90119-T0313
9015950327
main90159-50327
90159T0042
main90159-T0042
9026905074
main90269-05074
12 parts on this diagram · 1 diagram in section
SPEAKER for Toyota INNOVA
This section contains 12 genuine Toyota parts for the SPEAKER system of the Toyota INNOVA. Key components include: SPEAKER ASSY, W/BOX, NO.1, SPEAKER ASSY, W/BRACKET, SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.3.
