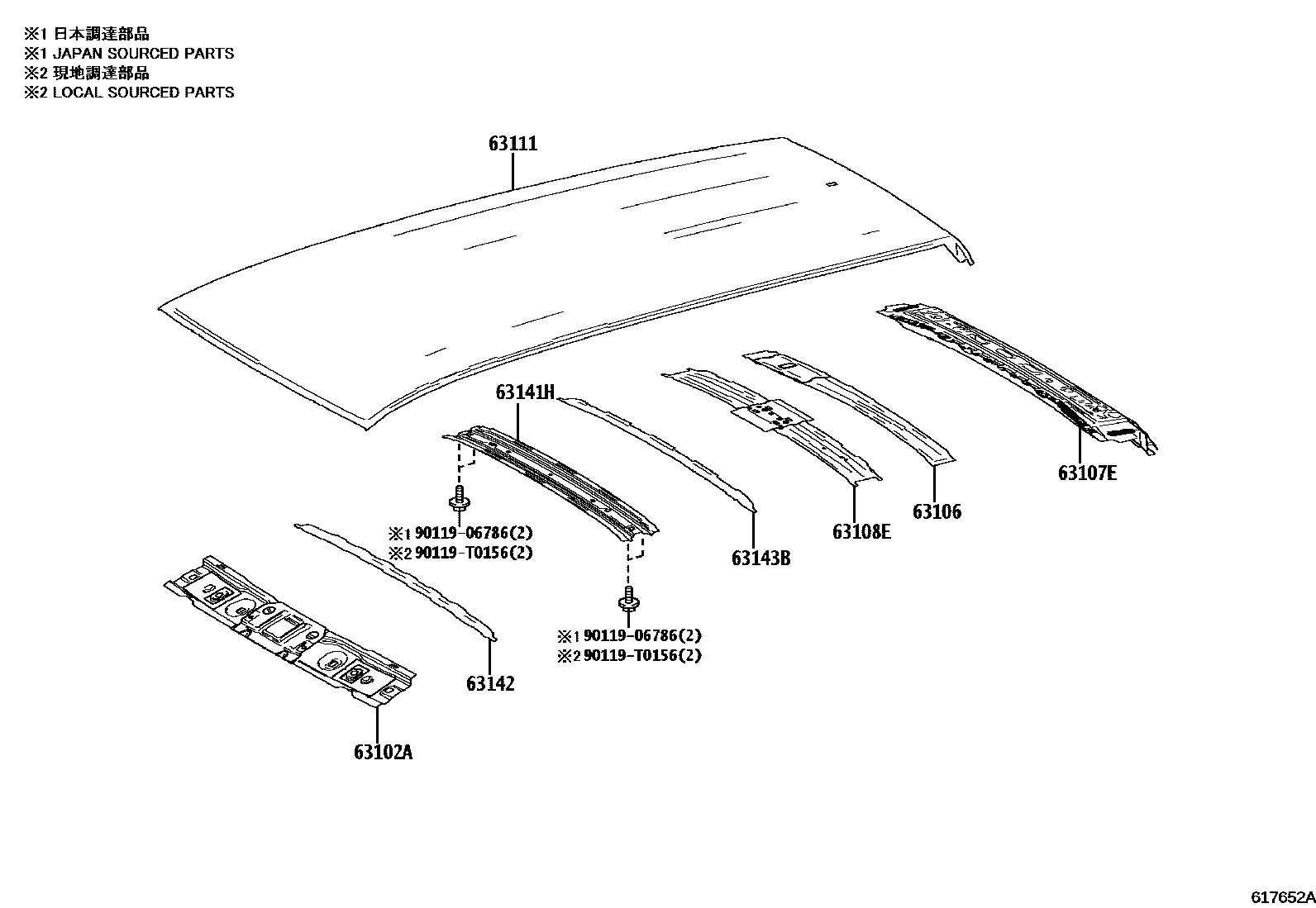

Toyota INNOVA — ROOF PANEL & BACK PANEL

0001 1ROOF PANEL(NORMAL ROOF) 0003 1ROOF PANEL(PANORAMA ROOF) 0004 1REMOVABLE ROOF HOUSING 0005 1DRAIN HOSE

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-VT900iMAGA10,MAGH10..(L,M)..IND202212

main63102-VT901iMAGH10..H..IND202212

MOON ROOF-WITH(PANORAMA ROOF)

main63102-VT902iMAGA10..08S..M;MAGA10..IDNP..(H,L);MAGA10,MAGH10..07S..(GCC,PH);MAGH10..08S..(H,L)..(GCC,IDN)202211

THAI PACKAGE

main63102-VT903iMAGA10..07S..IDN;MAGH10..(H,M)..(IDN,MA,TH,VN)202211

63106REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4

main63106-VT010iMAGA10,MAGH10..IND202212

main63106-VT020iMAGA10,MAGH10..IDNP202211

63107EREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.5

main63107-VT010iMAGA10,MAGH10..IND202212

main63107-VT020iMAGA10,MAGH10..IDNP202211

63108EREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6

main63108-VT010iMAGA10,MAGH10..(L,M)..IND202212

main63108-VT020iMAGA10..08S..M;MAGA10..IDNP..(H,L);MAGA10,MAGH10..07S..(GCC,PH);MAGH10..08S..(H,L)..(GCC,IDN)202211

THAI PACKAGE

63111PANEL, ROOF

main63111-VT010iMAGA10,MAGH10..(L,M)..IND202212

main63111-VT020iMAGH10..H..IND202303

MOON ROOF-WITH(PANORAMA ROOF)

main63111-VT030iMAGA10..08S..M;MAGA10..IDNP..(H,L);MAGA10,MAGH10..07S..(GCC,PH);MAGH10..08S..(H,L)..(GCC,IDN)202211

THAI PACKAGE

main63111-VT040iMAGA10..07S..IDN;MAGH10..(H,M)..(IDN,MA,TH,VN)202211

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-VT010iMAGA10,MAGH10..(L,M)..IND202212

main63141-VT030iMAGA10..08S..M;MAGA10..IDNP..(H,L);MAGA10,MAGH10..07S..(GCC,PH);MAGH10..08S..(H,L)..(GCC,IDN)202211

THAI PACKAGE

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-VT010iMAGA10,MAGH10..(L,M)..IND202212

main63142-VT030iMAGA10..08S..M;MAGA10..IDNP..(H,L);MAGA10,MAGH10..07S..(GCC,PH);MAGH10..08S..(H,L)..(GCC,IDN)202211

THAI PACKAGE

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-VT010iMAGA10,MAGH10..(L,M)..IND202212

main63143-VT030iMAGA10..08S..M;MAGA10..IDNP..(H,L);MAGA10,MAGH10..07S..(GCC,PH);MAGH10..08S..(H,L)..(GCC,IDN)202211

THAI PACKAGE

9011906786

main90119-06786

90119T0156

main90119-T0156

10 parts on this diagram · 4 diagrams in section
